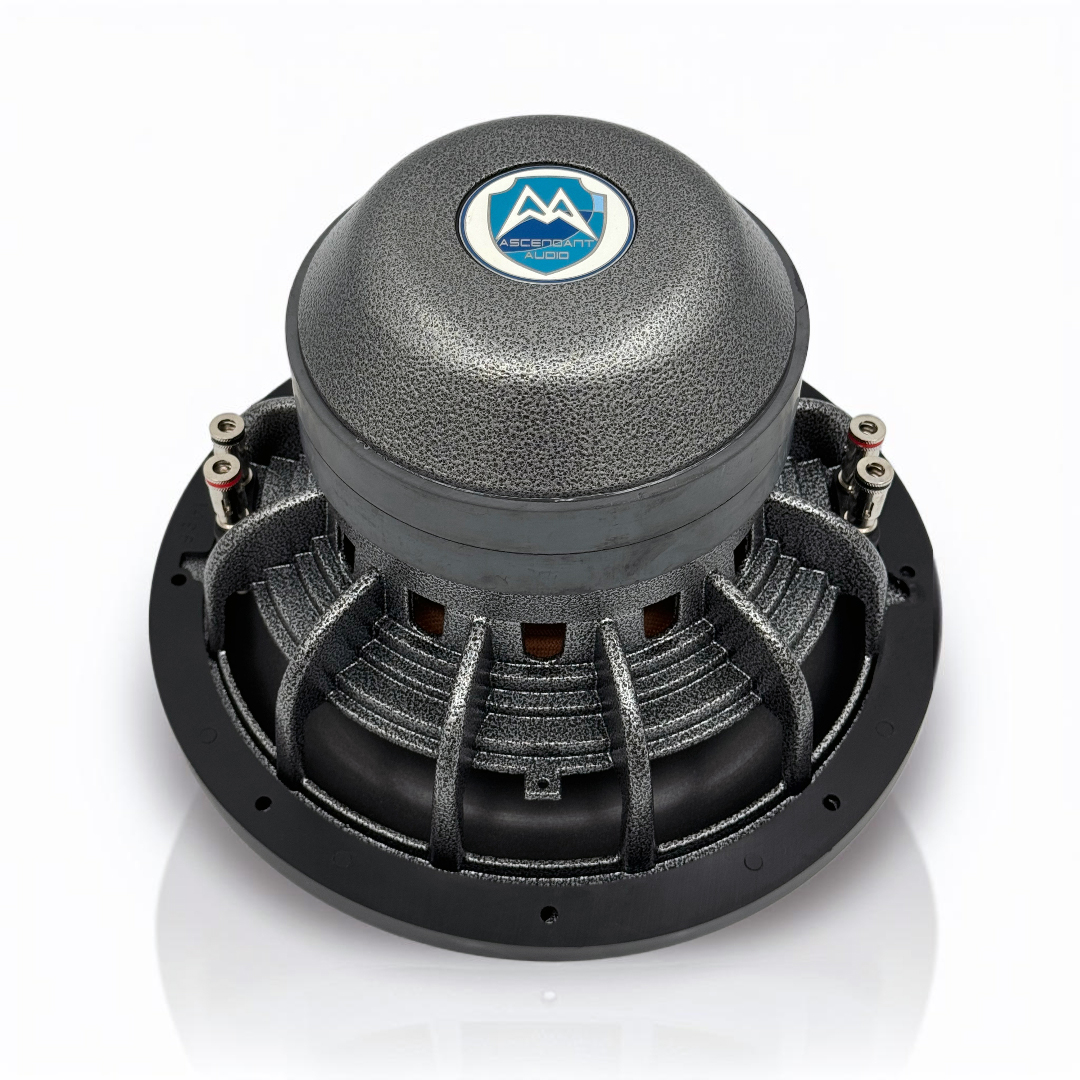

Ascendant Audio - ARSENAL Series - Image 2

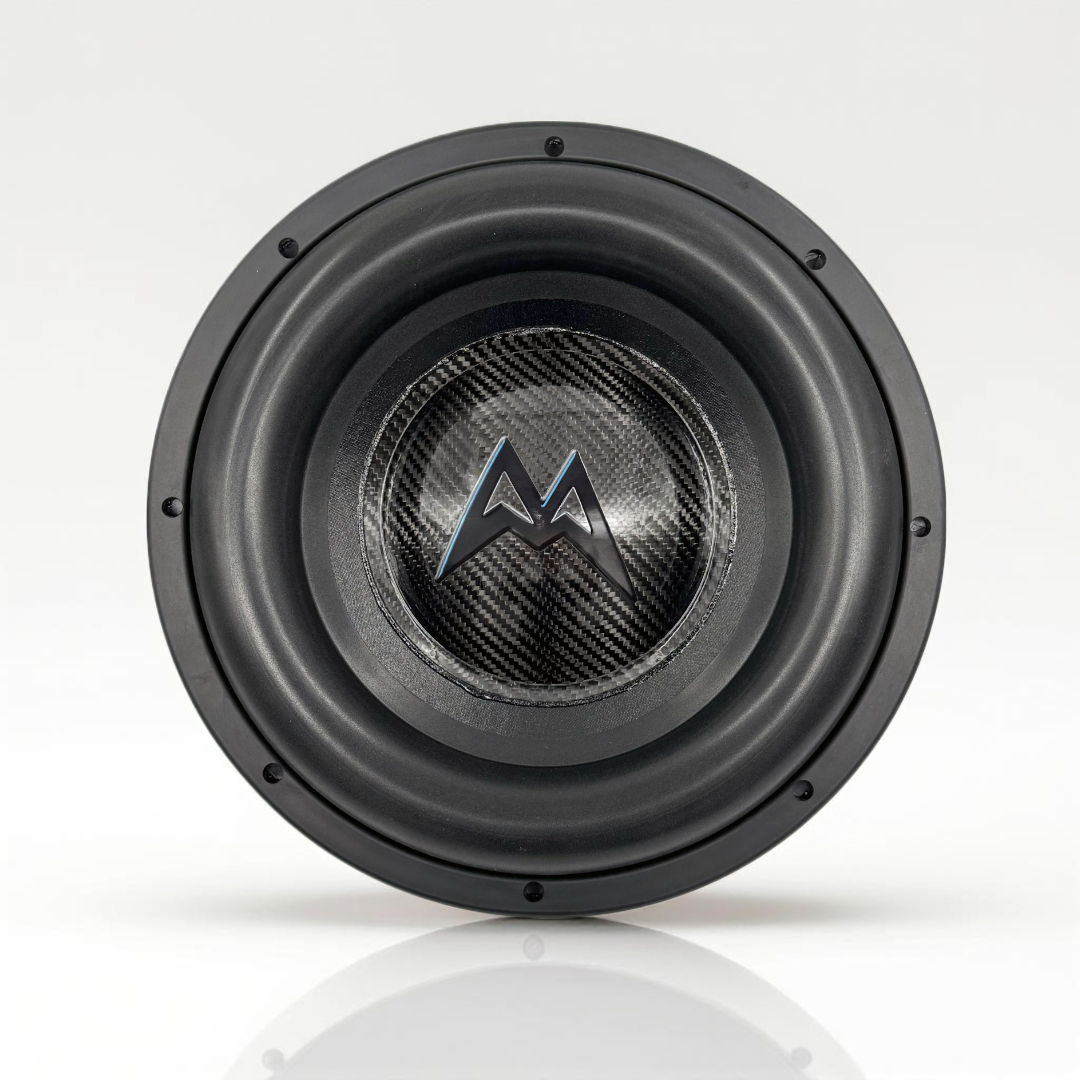

Ascendant Audio - ARSENAL Series - Image 3

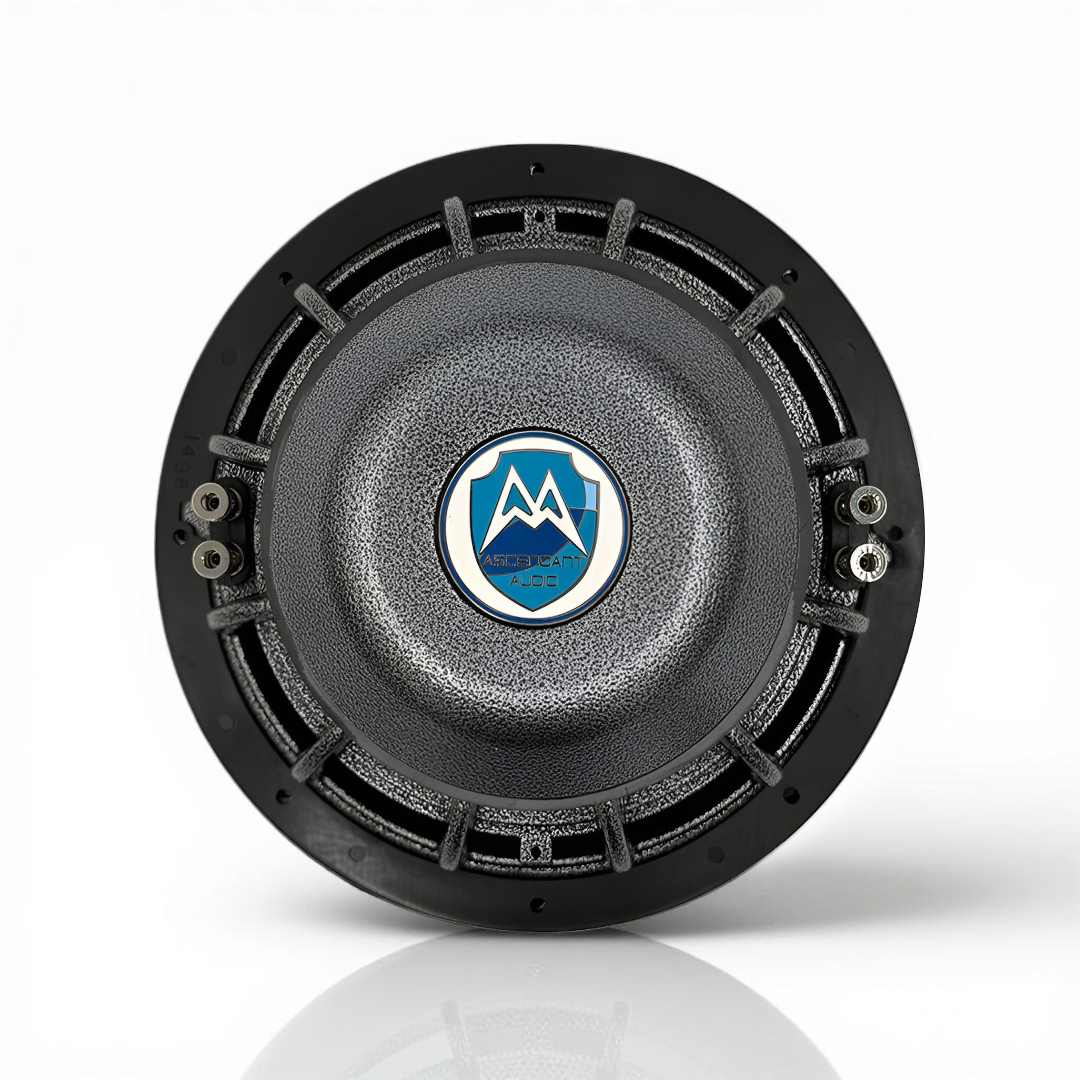

Ascendant Audio - ARSENAL Series - Image 4

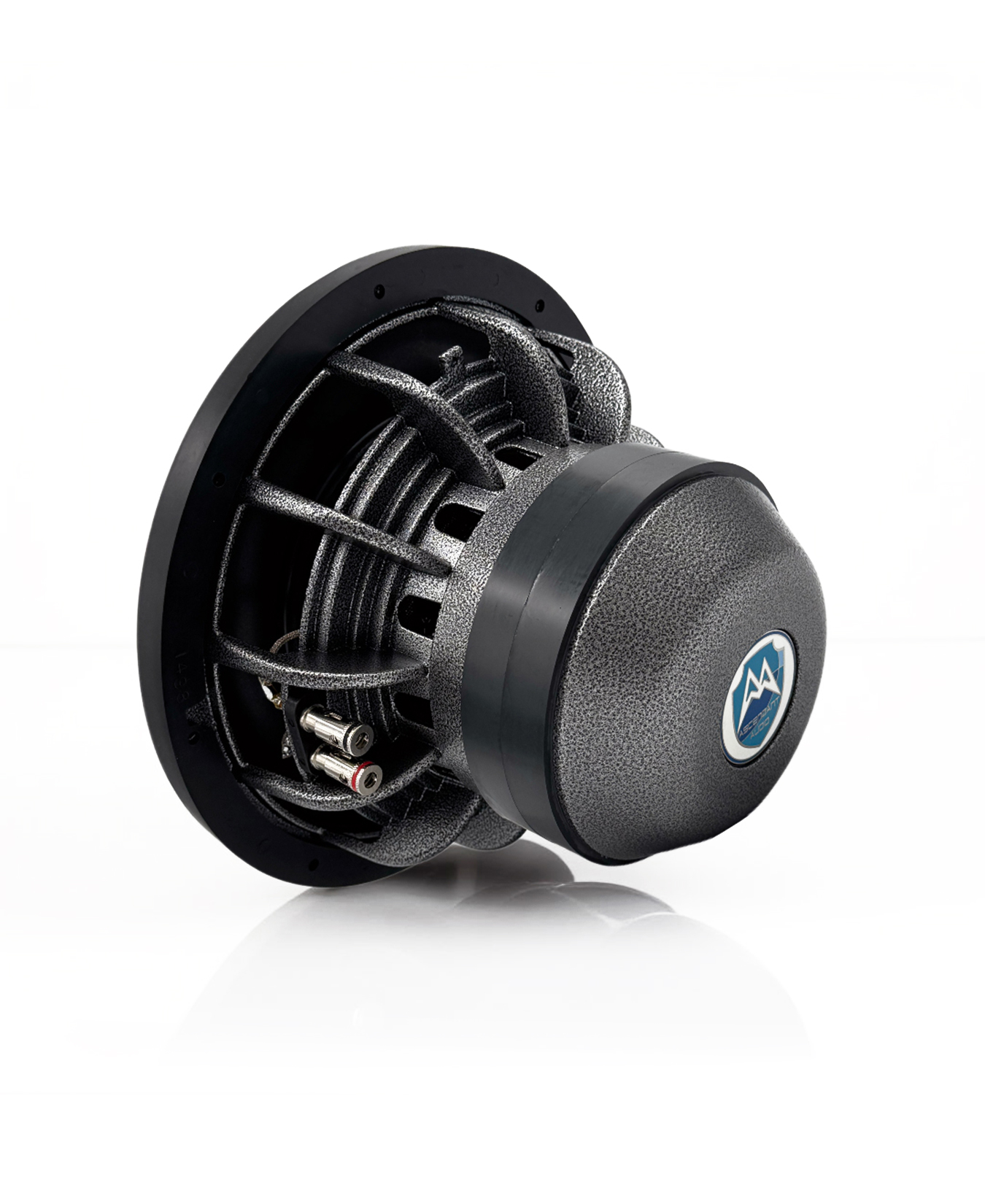

Ascendant Audio – ARSENAL Series

£324.17

EUR: €380

Every frequency, fully loaded

SKU: AA-ARSENAL Categories: 10", 12", Subwoofers Brand: Ascendant Audio

As the entry level Ascendant Audio series the Arsenal is anything but entry level. With a high xmax 3” voice coil for superior power handling and excursion ability, the Arsenal is budget friendly but truly capable of more than its price point suggests. Incredible flexibility and output from a light and compact build. The Arsenal redefines entry level and raises the bar for expectations.

Delivery 2-3 weeks

Features

10″/12″

1250Wrms power handling

3” high temperature aluminum coils

2 progressive spider pack

High current lead wire

High temp epoxy/CA construction

Carbon reinforced pulp cone

Multilayer foam surround

Heavy duty 12 spoke cast aluminum basket

Double stack ferrite magnet

Low carbon low reluctance steel

10 awg heavy terminals

Thiele-Small Parameters

	ARSENAL 10	ARESNAL 12
Coils	D1/D2	D1/D2
FS	36.5 Hz/36 Hz	34.20 Hz/34.10 Hz
RE	1.52/3.11	1.50/3.07
QMS	5.67/5.74	5.81/5.89
QES	0.880/0.850	0.89
QTS	0.762/0.740	0.920/0.882
MMS	194.6g/199g	219.8g/221.1g
Le	1.99mH/3.94mH	1.979mH
SD	310cm^2	480cm^2
VAS	13.29 l/13.32 l	32.20 l/32.11 l
SPL	84.8 1W/1m/84.8 1W/1m	86.49 1W/1m/86.5 1W/1m
BL (NA)	8.78/12.86	8.77/12.84
XMAX	26mm (One Way)	36mm (One Way)

Technical Specifications

	ARSENAL 10	ARSENAL 12
Overall Diameter	11.000”	12.625”
Cutout Diameter	9.250”	11.125”
Mounting Depth	5.250”	6.125”
DriverDisplacement	0.11cuft	0.14cuft

Weight	15 kg
