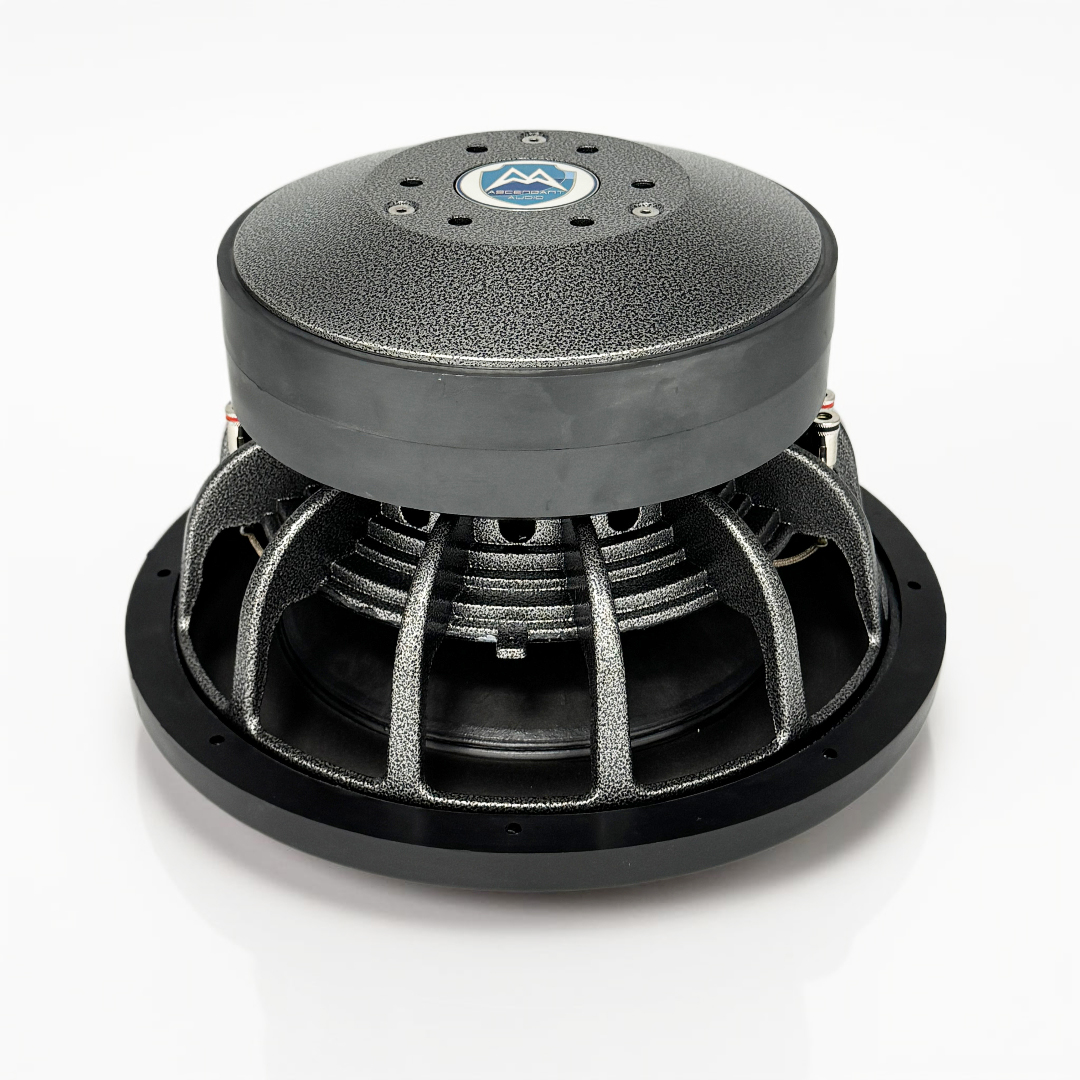

Ascendant Audio - CHAOS Series - Image 2

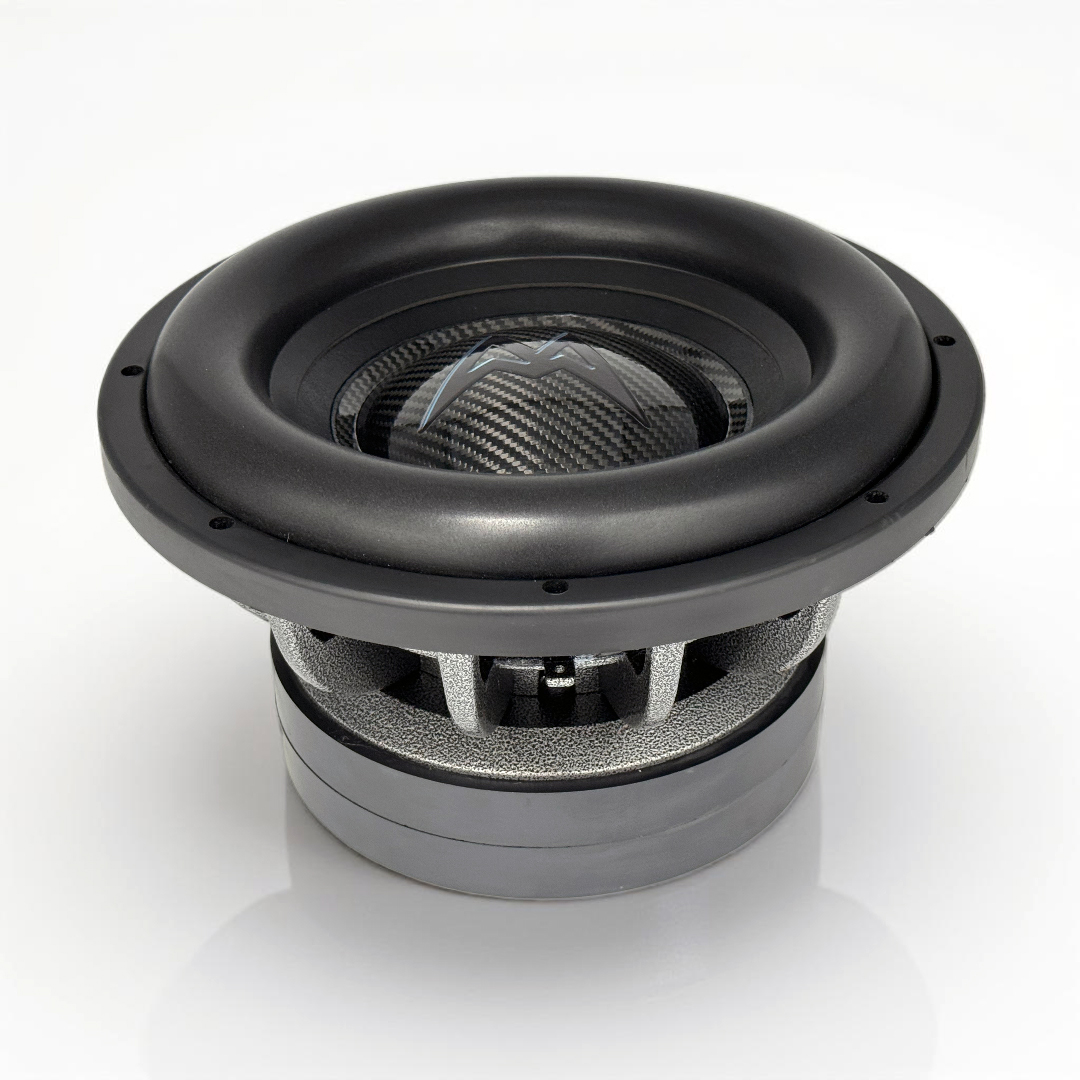

Ascendant Audio - CHAOS Series - Image 3

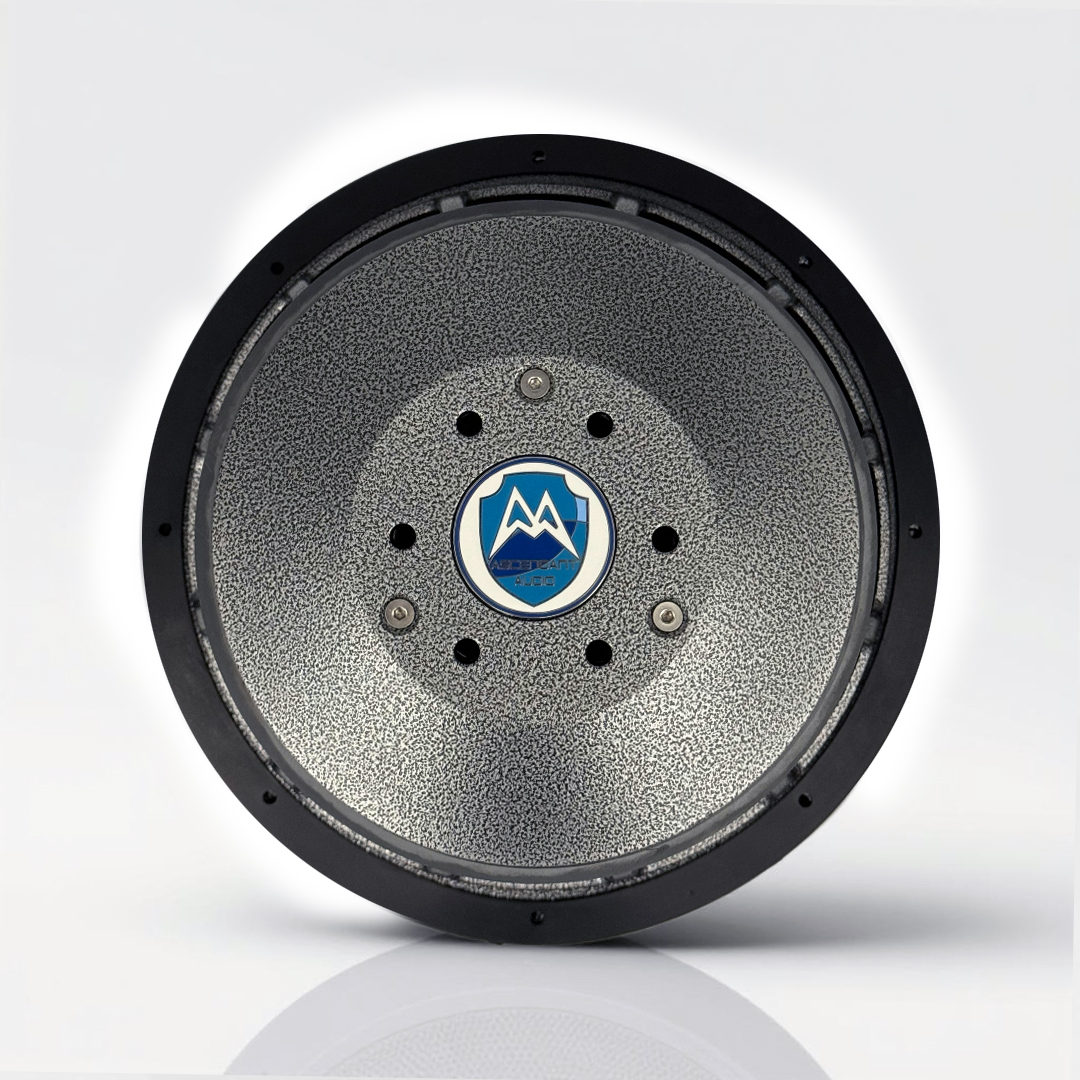

Ascendant Audio - CHAOS Series - Image 4

Ascendant Audio - CHAOS Series - Image 5

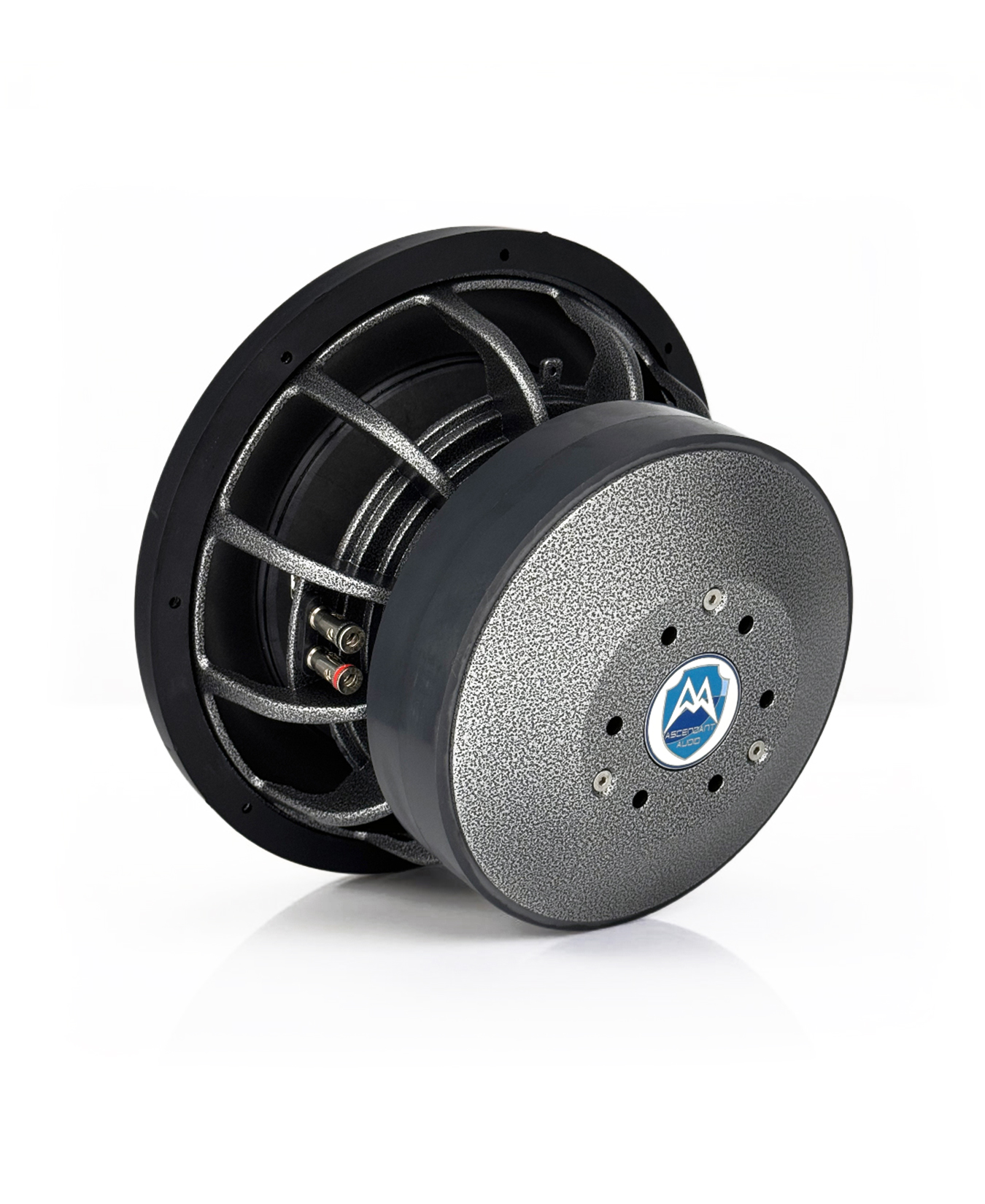

Ascendant Audio – CHAOS Series

£407.50

EUR: €478

Order had its turn. Unleash the Chaos

SKU: AA-CHAOS Categories: 10", 12", 15", 18", Subwoofers Brand: Ascendant Audio

The Ascendant Audio Chaos series was always designed for tough tasks in smaller spaces. At the top of our entry line the Chaos is tight and punchy for upper kick bass, but loves the lows if put into a box designed for it. Feed it 1000-2000W and it will have tremendous attack as well as ultra smooth low frequency response. A favorite in smaller vehicles and enclosure applications while still providing aggressive output and undeniable sonic superiority.

Ported or 6th order friendly

Delivery 2-3 weeks

Features

10″/12″/15″/18″

1750Wrms power handling

3” high temperature aluminum coils

2 progressive spider pack

High current lead wire

High temp epoxy/CA construction

Carbon reinforced pulp cone

Multilayer foam surround

Heavy duty 12 spoke cast aluminum basket

8.7” diameter double stack magnet

Low carbon low reluctance steel

Multiple aluminum inductance rings

10 awg heavy terminals

Thiele-Small Parameters

	CHAOS 10	CHAOS 12	CHAOS 15	CHAOS 18
Coils	D1/D2	D1/D2	D1/D2	D1/D2
FS	Hz/ Hz	35.10 Hz/34.22 Hz	33.20 Hz/32.40 Hz	Hz/ Hz
RE	/	1.51/3.38	1.50/3.29	/
QMS	/	4.86/4.907	5.11/5.16	/
QES	/	0.43/0.4176	0.53/0.52	/
QTS	/	0.395/0.3848	0.48/0.472	/
MMS	/	249.8g/268.1g	323.8g/341.3g	/
Le	/	1.21mH	1.29mH/2.52mH	**
SD	310cm^2	480cm^2	810cm^2	1210cm^2
VAS	l/l	27.01 l/26.23 l	66.06 l/65.8 l	l/ l
SPL	1W/1m/ 1W/1m	89.37 1W/1m/89.04 1W/1m	91.62 1W/1m/91.37 1W/1m	1W/1m/ 1W/1m
BL (NA)	/	14.04/21.6	14.01/20.97	/
XMAX	24mm (One Way)	24mm (One Way)	24mm (One Way)	24mm (One Way)

Technical Specifications

	CHAOS 10	CHAOS 12	CHAOS 15	CHAOS 18
Overall Diameter	11.000”	12.625”	11.000”	12.625”
Cutout Diameter	9.250”	11.0625”	13.875”	16.875”
Mounting Depth	6.500”	7.125”	8.375”	9.500”
DriverDisplacement	0.13cuft	0.15cuft	0.18cuft	0.23cuft

Weight	20 kg
