Ascendant Audio – HAVOC Series

£849.00

EUR: €1,014

Silence had its warning. Wreak Havoc

SKU: AA-HAVOC Categories: Subwoofers, 12", 15", 18" Brand: Ascendant Audio

The revised Ascendant Audio Havoc series pulls cues from its heritage and decades of SQ and SPL speaker designs to yield the best balance of power to output with uncompromising sonic ability. The Havoc series has always been known for its incredible sound and balance. From a ridiculously subsonic rebassed favorite to the latest SQ track it will be equally at home in both applications. With 2750W of power handling it works well with amps ranging from 1500-3000W depending on the application and enclosure design.

Ported and 6th order friendly.

Options for sealed or 4th order applications

Delivery 2-3 weeks

Features

12″/15″/18″

2750Wrms power handling

3” high temperature aluminum coils

2, 3, or 4 spider options

Dual high current lead wire

High temp epoxy/CA construction

Carbon reinforced pulp cone

Multilayer foam surround

Heavy duty spoke cast aluminum basket

8.7” diameter triple stack magnet

Low carbon low reluctance steel

Multiple aluminum inductance rings

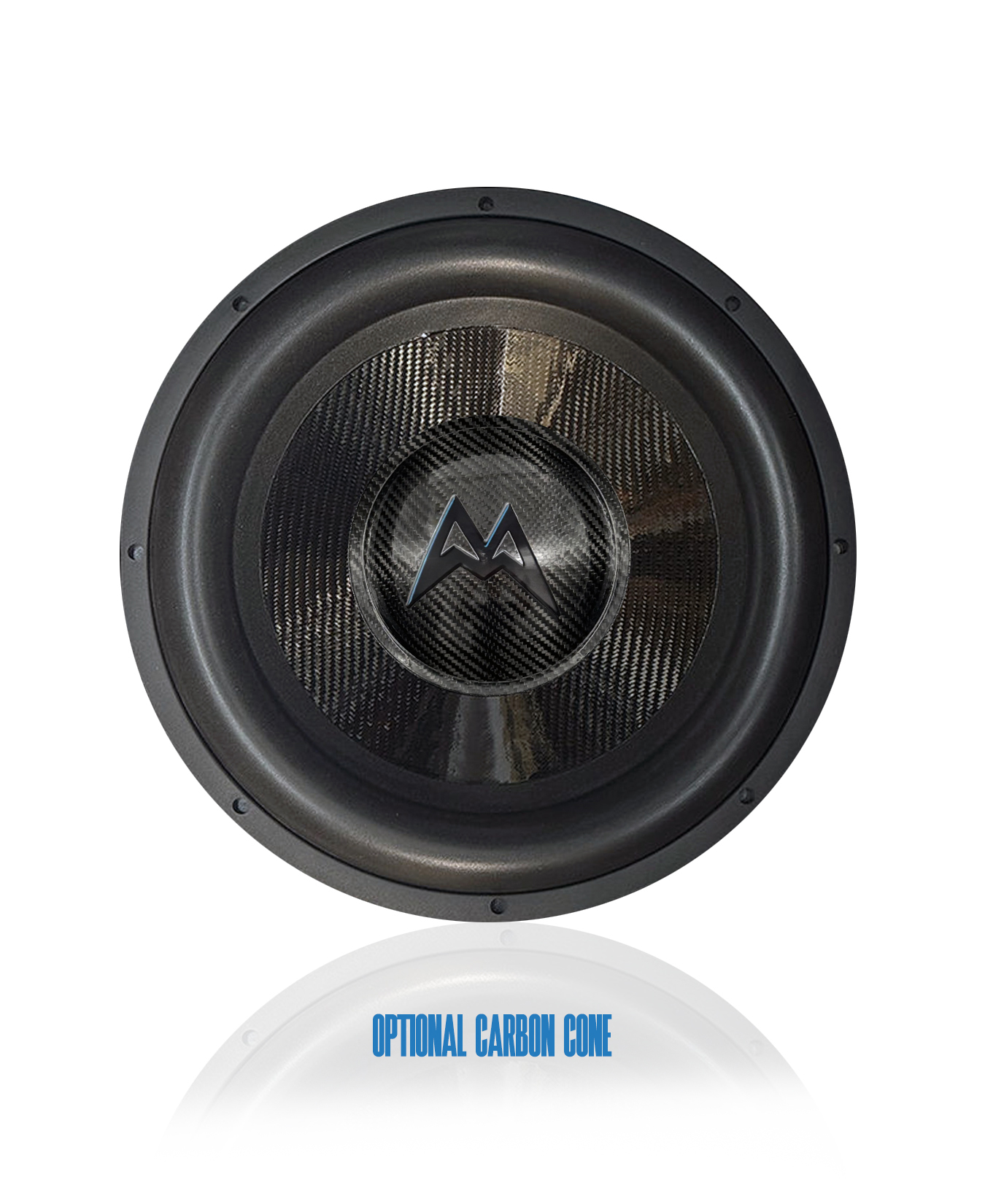

Optional Carbon Fibre cone

8 awg heavy terminals

Thiele-Small Parameters

	HAVOC 12	HAVOC 15	HAVOC 18
Coils	D1/D2	D1/D2	D1/D2
FS	33 Hz/32.3 Hz	32.1 Hz/31.2 Hz	28.46 Hz/28.01 Hz
RE	1.96/4.0	1.95/4.01	1.99/3.99
QMS	4.89/4.97	5.010/5.106	6.03/6.12
QES	0.490/0.5	0.53/0.53	0.630/0.611
QTS	0.446/0.455	0.479/0.480	0.571/0.544
MMS	347g/362.2g	379.4g/395.7g	472.7g/486.3g
Le	1.04mH	1.01mH/2.42mH	0.99mH/2.37mH
SD	480cm^2	810cm^2	1210cm^2
VAS	22 l/22.1 l	60.3 l/61.20 l	139.1 l/138 l
SPL	87.11 1W/1m/86.74 1W/1m	90.79 1W/1m/90.48 1W/1m	92.04 1W/1m/91.99 1W/1m
BL (NA)	16.92/24.28	16.78/24.23	16.32/23.6548
XMAX	33mm (One Way)	33mm (One Way)	33mm (One Way)

Technical Specifications

	HAVOC 12	HAVOC 15	HAVOC 18
Overall Diameter	12.625”	11.000”	12.625”
Cutout Diameter	11.0625”	13.875”	16.875”
Mounting Depth	7.250”	8.750”	9.500”
DriverDisplacement	0.15cuft	0.18cuft	0.23cuft

Weight	28 kg
