DPS100A

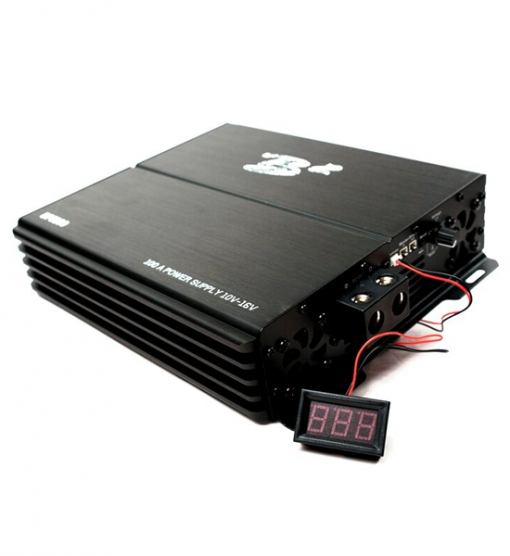

Demo Power Supply 100 Ampere, a powerplant and a lifesaver for any in need of a stability for excessive performance. Measuring only 10.3″ x 9.45″ x 2.64″ (26.2 x 24 x 6.7 cm) the DPS100A are smaller than most switch mode power supplies, but the sleek heatsink houses quad fans with push/pull for increased airflow.
With up to 100 ampere at your disposal equal to 1500 watts continuously, this unit will supply as much grunt as an extra medium sized alternator running at full charge.
Should that not be sufficient, the DPS100A can be ran in a master/slave mode and with the EZ link option, it is simpler, faster and more convenient to connect up to 4 units in a chain, making them work as a power house able to back you up with 6000 watts or 400 ampere in total, which of course has true 0 AWG output terminals!
When is that much power needed? Some simply don’t have room for the extra alternators, regulations might even demand the engines have to be cut off at expos.
Then you can only rely upon your (hopefully) large battery bank, but with the power available in todays’ amplifiers, it can drain your system faster than expected.
So instead of increasing chances of damage, clipping or total disaster, the DPS100A can be the lifesaver for your needs to demo without higher stakes.
But there’s more, as a power supply, the DPS100A is ideal for any technicians test bench, multimedia displays, or in line with batteries.
As a reminder, this power supply is CE certified and safe to use.
Input Voltage: | 220 V (+/-10%) |
Adjustable Output Voltage: | 10 V~ 16 V DC (+/- 5%) |
Output Current: | 100 Ampere DC (Maximum) |
Input Power: | 1600 W (7.2 A 220 V AC) |
Output Power: | 1600 W (7.2 A 220 V AC) |
Output Terminal Connectors: | 0AWG |
Line Regulation: | Less than+/- 5% |
Load Regulation: | Less than+/- 5% |
Efficiency: | >85% |
Overload Protection: | 10 A Fuse / 250 V (Input Voltage 220 V) |
Output Ripple: | 150 mV RMS |
Circuit Design: | Switch Mode |
Thermal Protection: | 75°C / 167 F |
Cooling Fan Dimension: | 1.57″ x 1.57″ x 0.4″ 40 x 40 x 10 mm |
Dimensions: | 10.3″ x 9.45″ x 2.64″ 26.2 x 24 x 6.7 cm |
Input Cable: | UL 14 AWG |
ON/OFF Switch: | 15 A / 250 V AC |
