The Pro Audio Rage series from B² Audio is an extremely efficient loudspeaker series that not only impresses visually, enormous levels can be achieved even with low power.

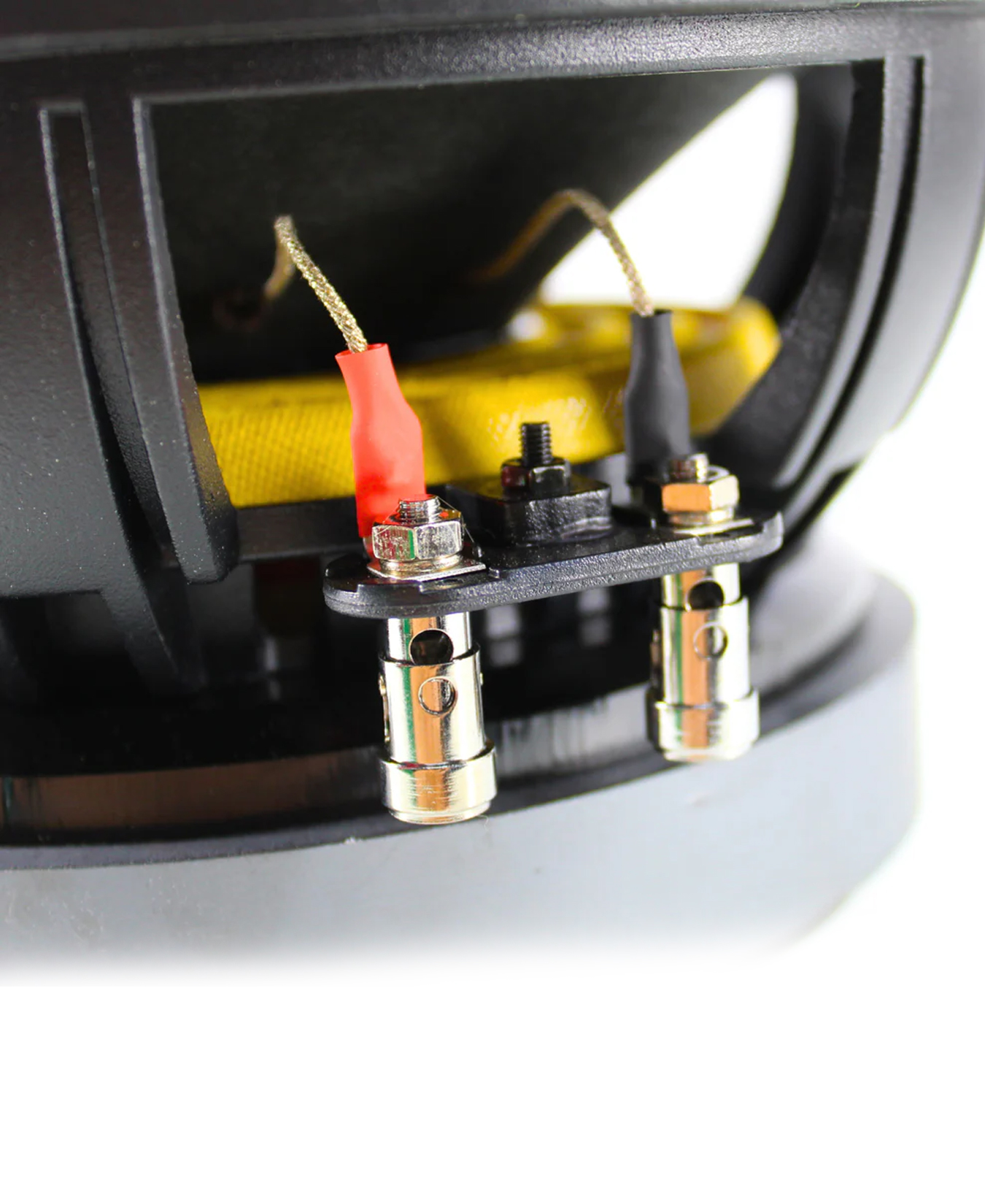

The RAGE8 CXP features a unique 2 way design. With its integrated compression style tweeter. Making this a 2-way combination. Thanks to a large 2.5″ coil, the speakers achieve high performance and a low resonance frequency, which has a significant effect on the sound. The speakers have 2 connections The tweeter can be controlled separately, as can the woofer itself, which also enables active operation as well as passive operation. With 98dB efficiency and a continuous power of 250W RMS, enormous levels linear reproduction.

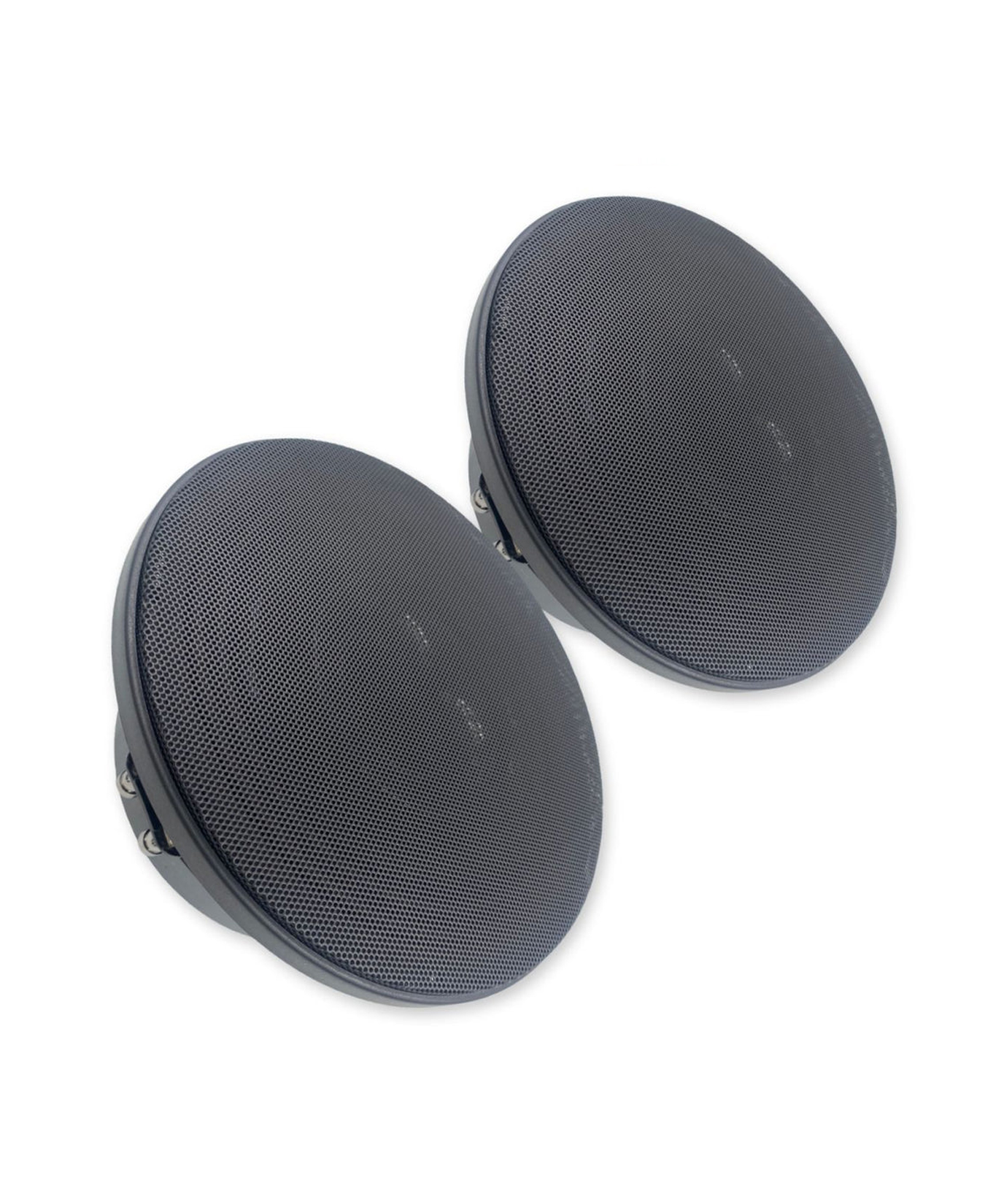

Grills included!
Technical Features :
    8″ (20cm) bass-midrange driver.
    Nominal impedance: 4 Ohm
    MAX power 500 watts
    RMS power 250 watts
    Impedance 4 Ohm
    Resonance frequency 79.5 Hz
    Frequency response 70-20000 Hz
    Sensitivity(dB 1w/2.83v) 98 dB
    Voice coil diameter 63.5mm
    Coil material KCCAW
    Magnet 50 Oz
Sold in Pairs. If you add 1 qty you will receive a pair of speakers
| Specification | RAGE 8 CXP |
|---|---|
| Power Handling: | 250 w* |
| Frequency Response:: | 70Hz ~ 20 KHz |
| Sensitivity: | 98dB |
| Nominal Impedance: | 4 Ω |
| DC Resistance (Re): | 3.4 Ω |
| Resonanse Frequency (Fs): | 79.5Hz |
| Vas : | 14.2L |
| Qts : | 0.179 |
| Qms : | 67.6 |
| Qes : | 0.179 |
| Voice Coil diameter : | 2.5″ |































 Download PDF Manual
Download PDF Manual
