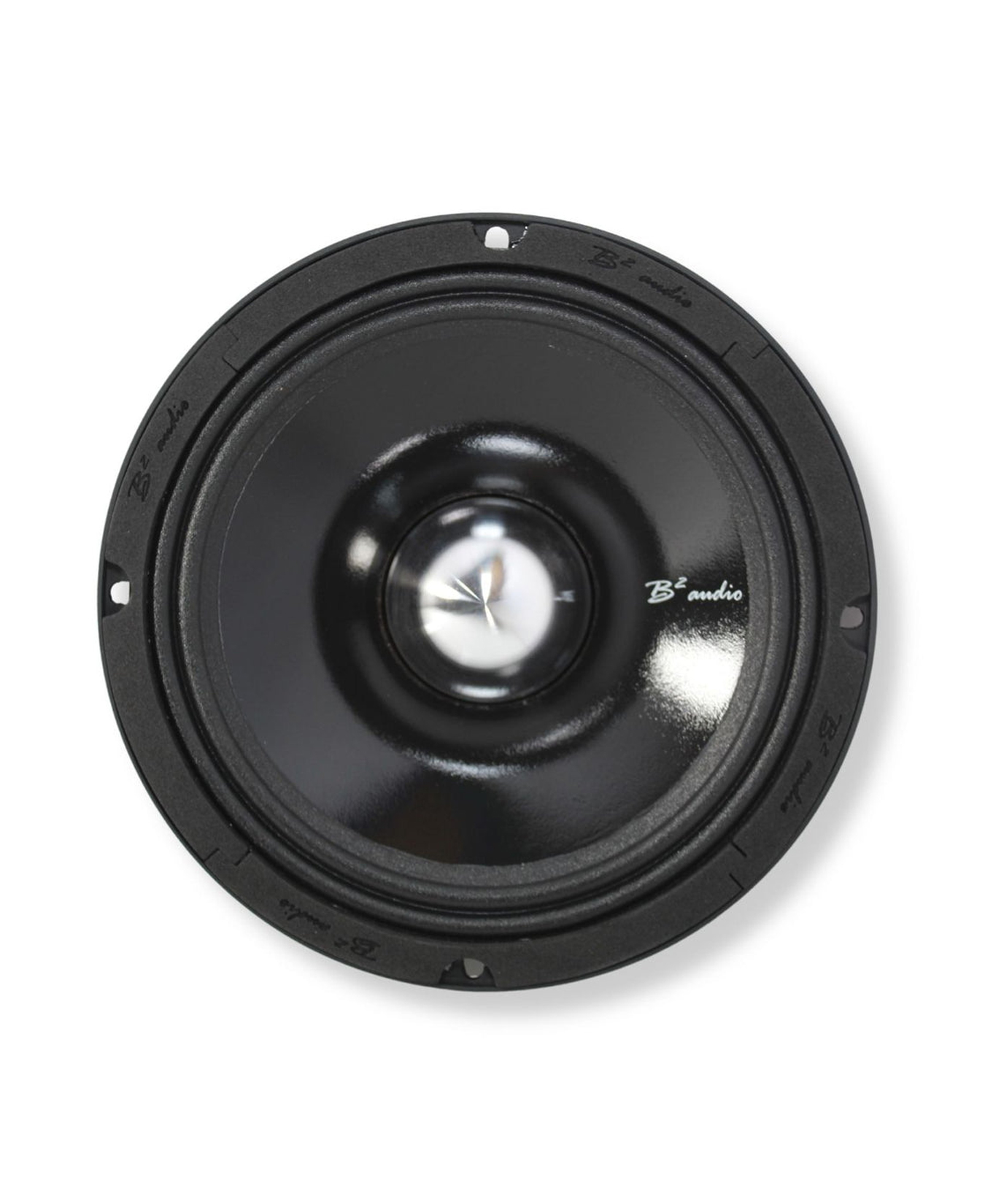

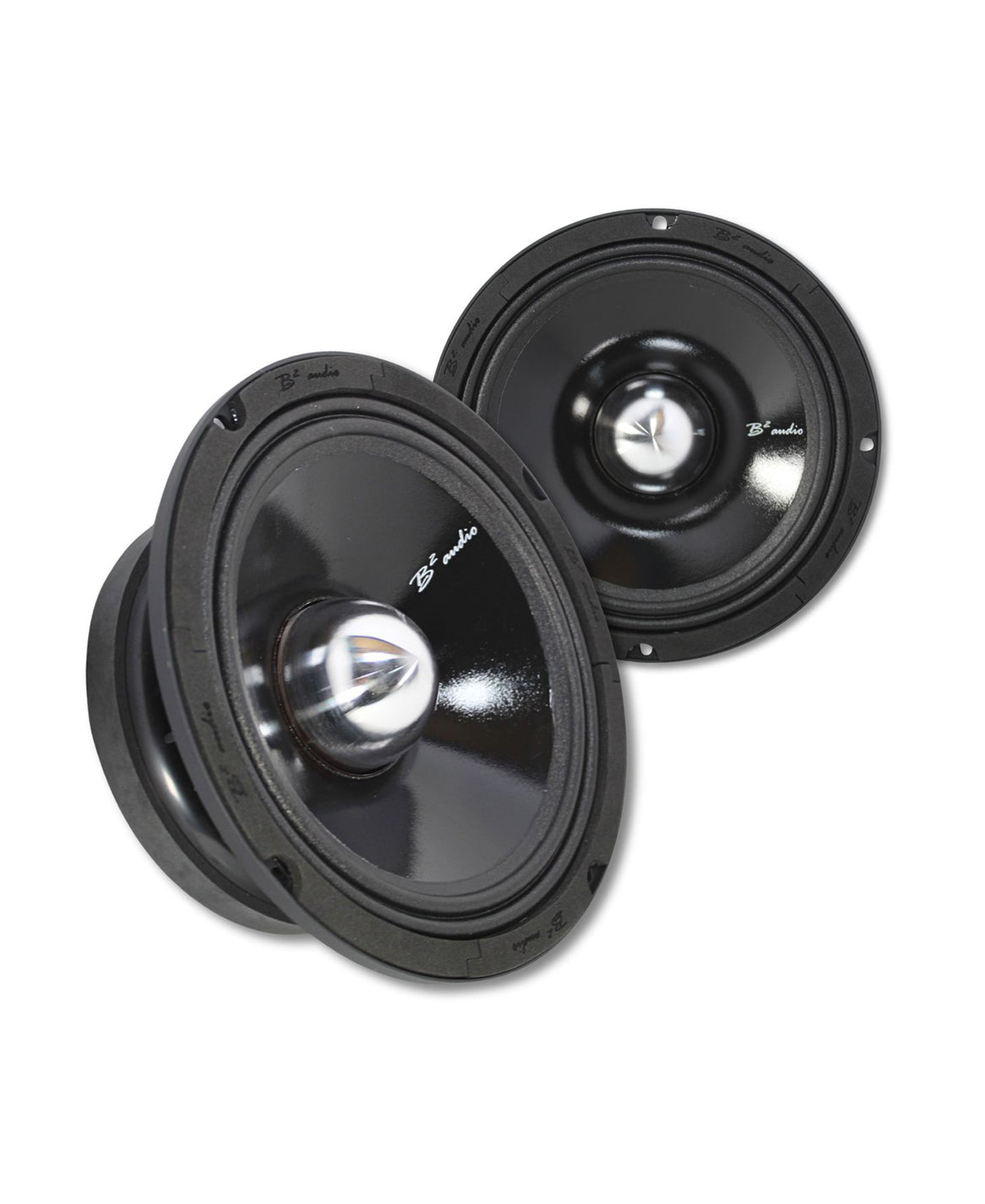

B2 Audio RAGE8P v3 Pro Audio mid-range speaker

Unleash the rage with the B2 Audio Rage 8″ 4-Ohm 120W RMS Mid-Range Speaker B2-RAGE8P v3, a beast of a speaker engineered to tear through the competition with brutal efficiency. Armed with a powerful 300W RMS and a thunderous maximum power handling of 600W, these speakers dominate with hard-hitting precision.

The 2.4″ voice coil roars to life, driven by a massive 41.5 oz magnet that powers intense performance across the frequency response range of 87 – 10000 Hz. With a sensitivity of 99.7 dB, the Rage 8″ ensures you hear every detail at deafening volumes.

Precision is built into every aspect, from the tight and controlled resonance frequency of 87 Hz to the advanced voice coil material and powerful BL factor of 10.79 T/M. This aggressive mid-range speaker is not just loud but capable of delivering an accurate and immersive audio experience.

With a robust and durable design, the B2 Audio Rage 8″ is ready for any challenge. Its compact size and lightweight build mean it can fit seamlessly into your setup while packing a punch that leaves your ears ringing and your adrenaline pumping.

Get ready to feel the rage and elevate your sound experience to new, uncharted heights with the B2 Audio Rage 8″ 4-Ohm 300W RMS Mid-Range Speaker B2-RAGE8P v3. Feel the power and hear the difference. It’s time to get aggressive.

Sold in Pairs. If you add 1 qty you will receive a pair of speakers

RAGE PRO Manual

Specifications:

• RMS Power Handling: 300W
• Maximum Power Handling: 600W
• Nominal Impedance: 4-Ohm
• Voice Coil Diameter: 2.4*” (61 mm)
• Magnet Weight: 41.5 Oz
• Frequency Response: 87-10000 Hz
• Sensitivity: 99.7 dB
• Nominal Chassis Diameter: 8″ (200 mm)
• Resonance Frequency: 87 Hz
• Voice Coil Material: CCAR

Thiele & Small Parameters:

• Free Air Resonance (Fs): 87 Hz
• Resistance (Re): 3.3-Ohm
• Mechanical Factor (Qms): 11.025
• Electrical Factor (Qes): 0.256
• Total Factor (Qts): 0.251
• Equivalent Volume (Vas): 14.69 L
• L Efficiency: 3.742%
• BL Factor (BL): 10.79 T/m
• Moving Mass (Mms): 16.4 grams
• Excursion Max (Xmax): 5 mm
• Sd (cm^2) 226 cm^2
• EBP: 339.8

Measurements:

• Overall Diameter: 8.3″ (211 mm)
• Front Mount Baffle Cutout: 7.48″ (190 mm)
• Mounting Depth: 3.05″ (77.5 mm)
• Overall Depth: 3.35″ (85 mm)
• Product Weight: 7.76 LBS
• Sold as: Pair
