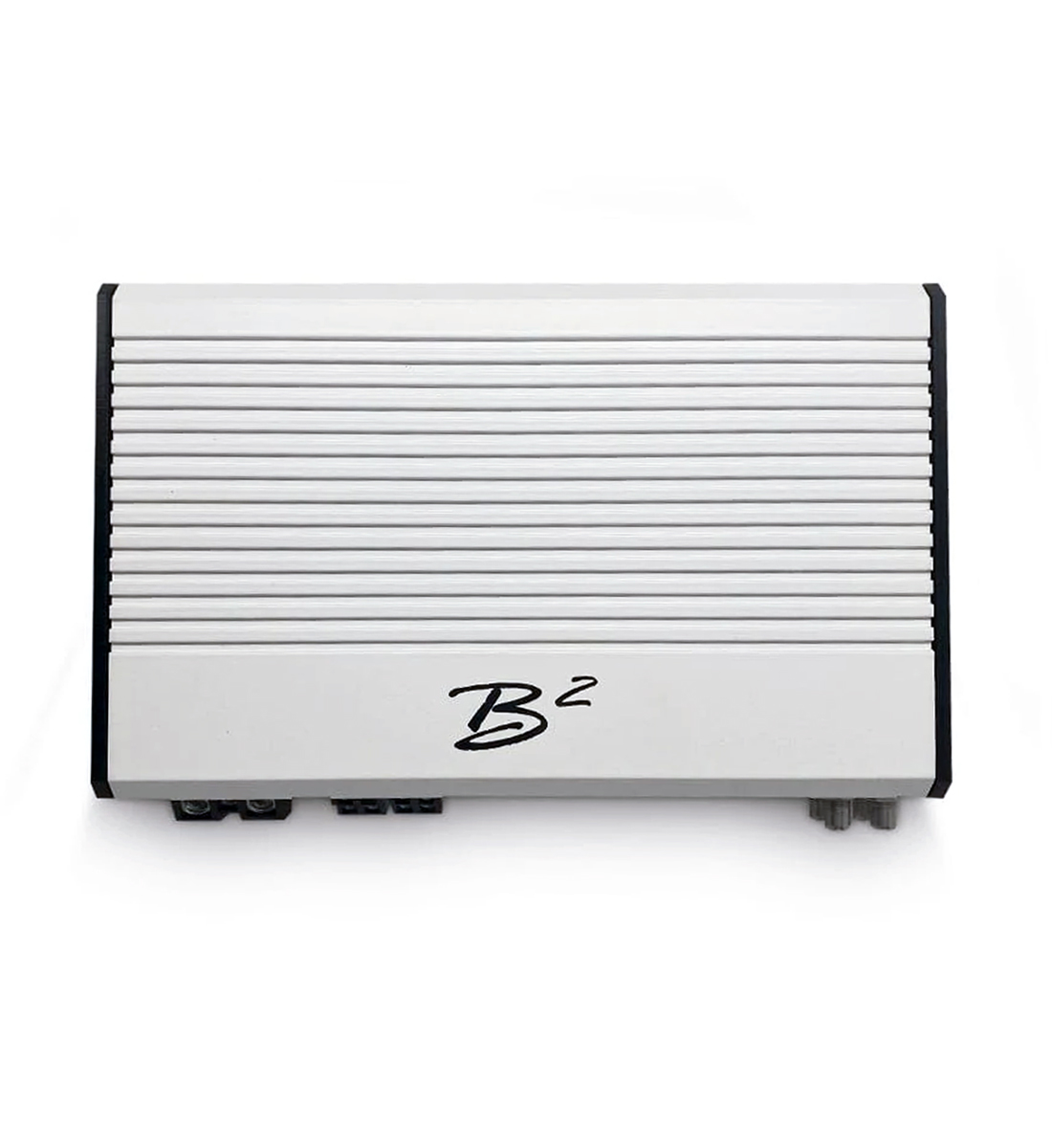

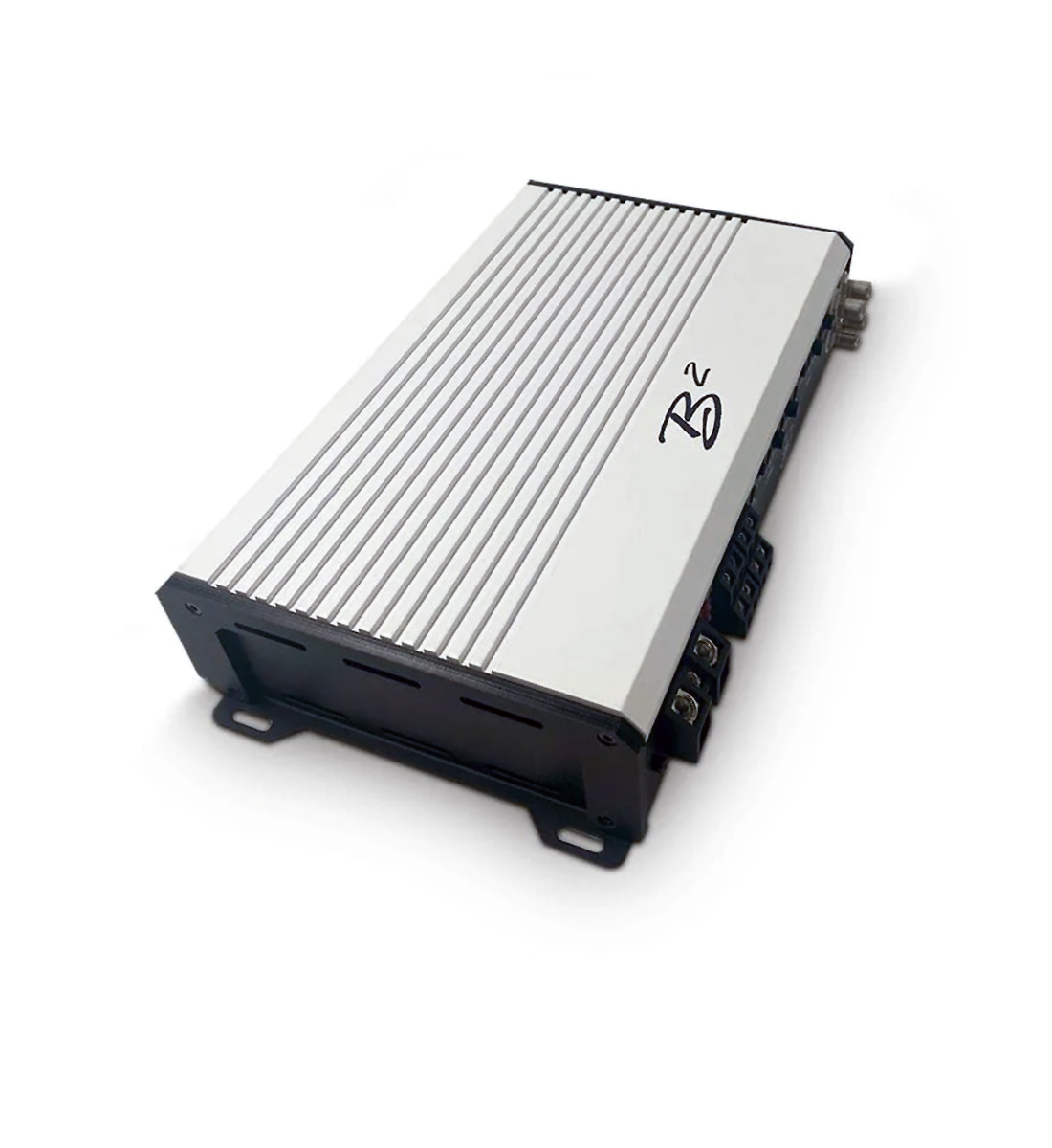

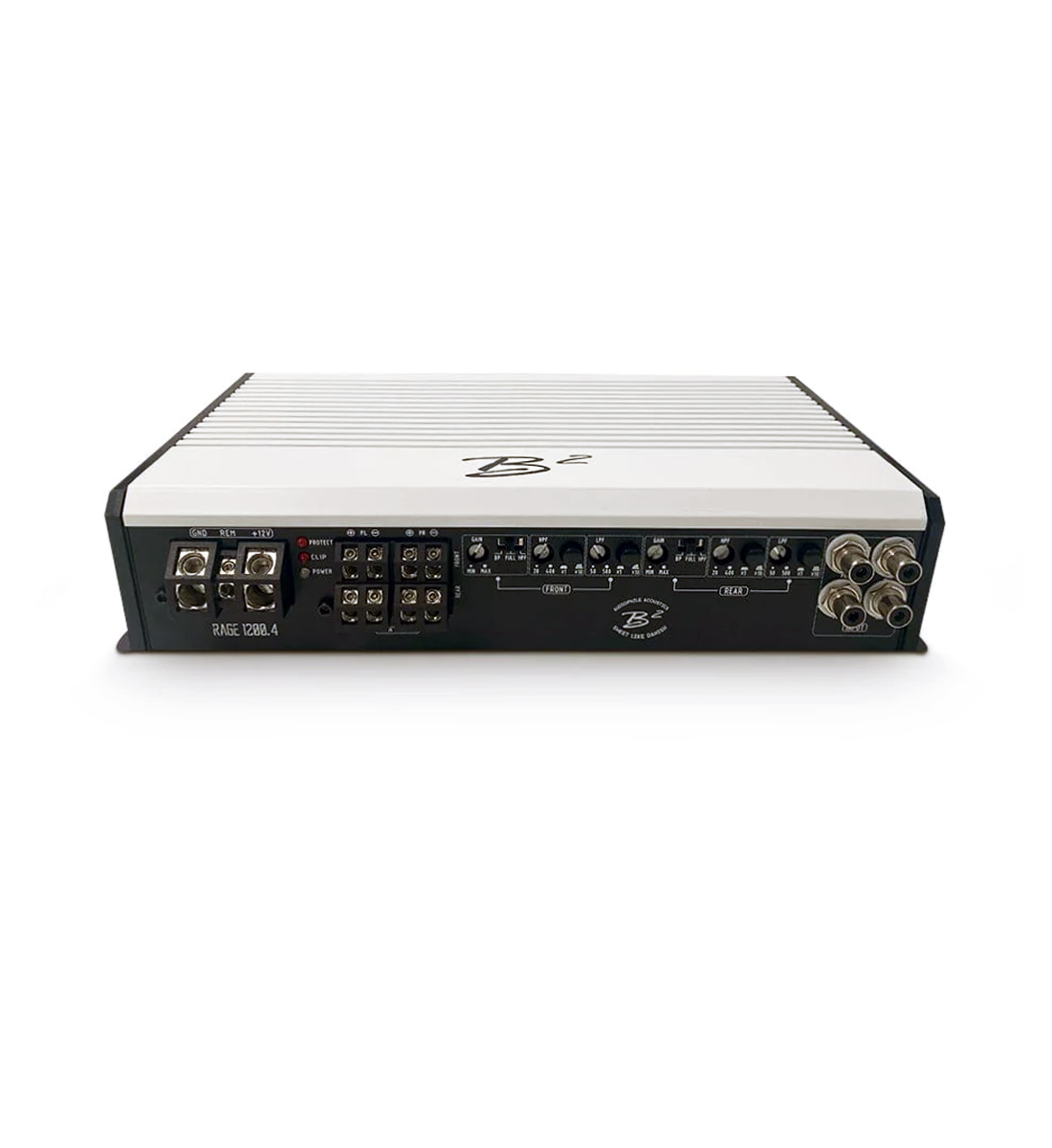

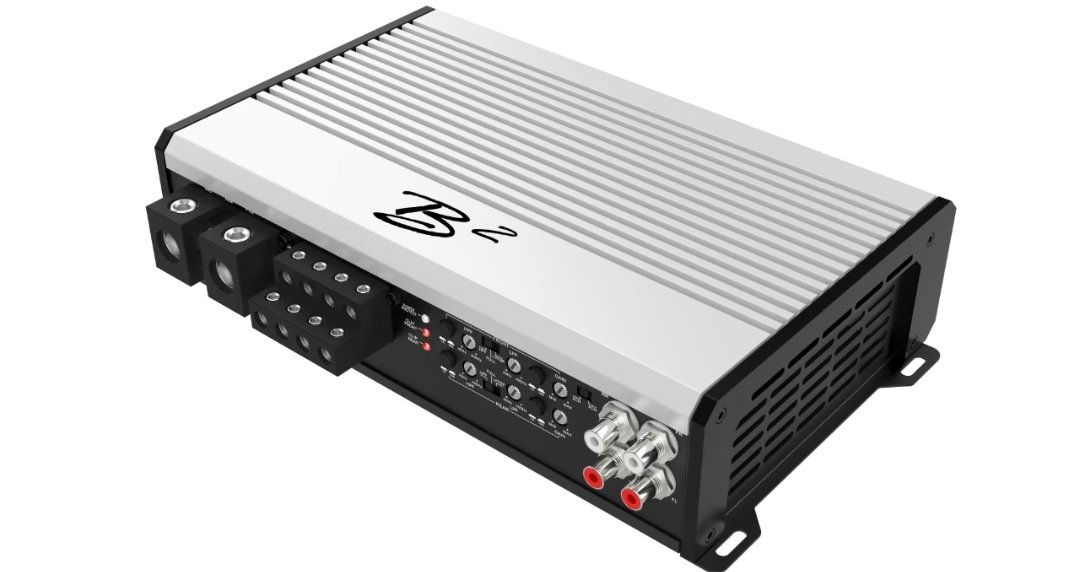

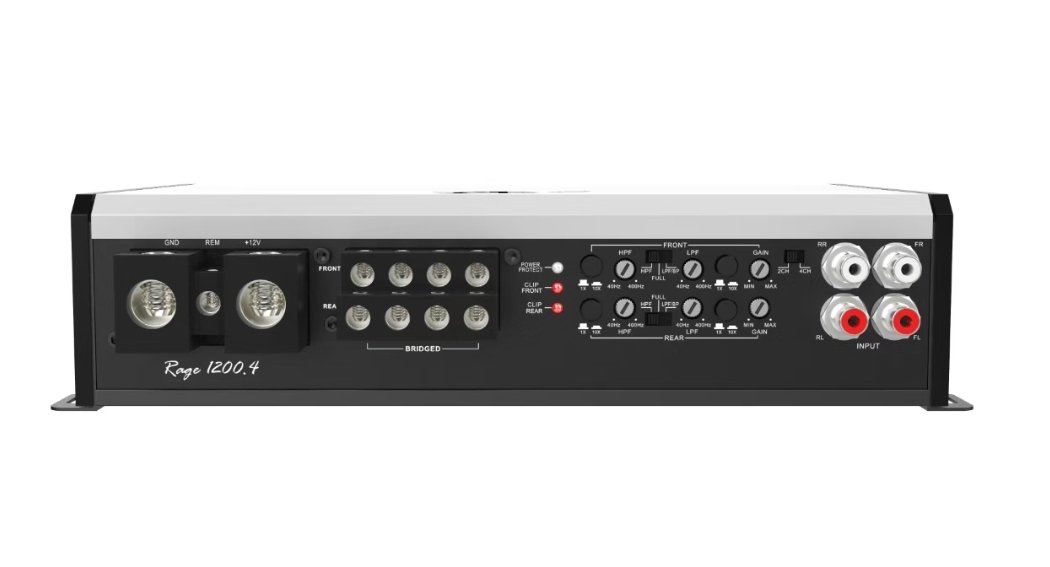

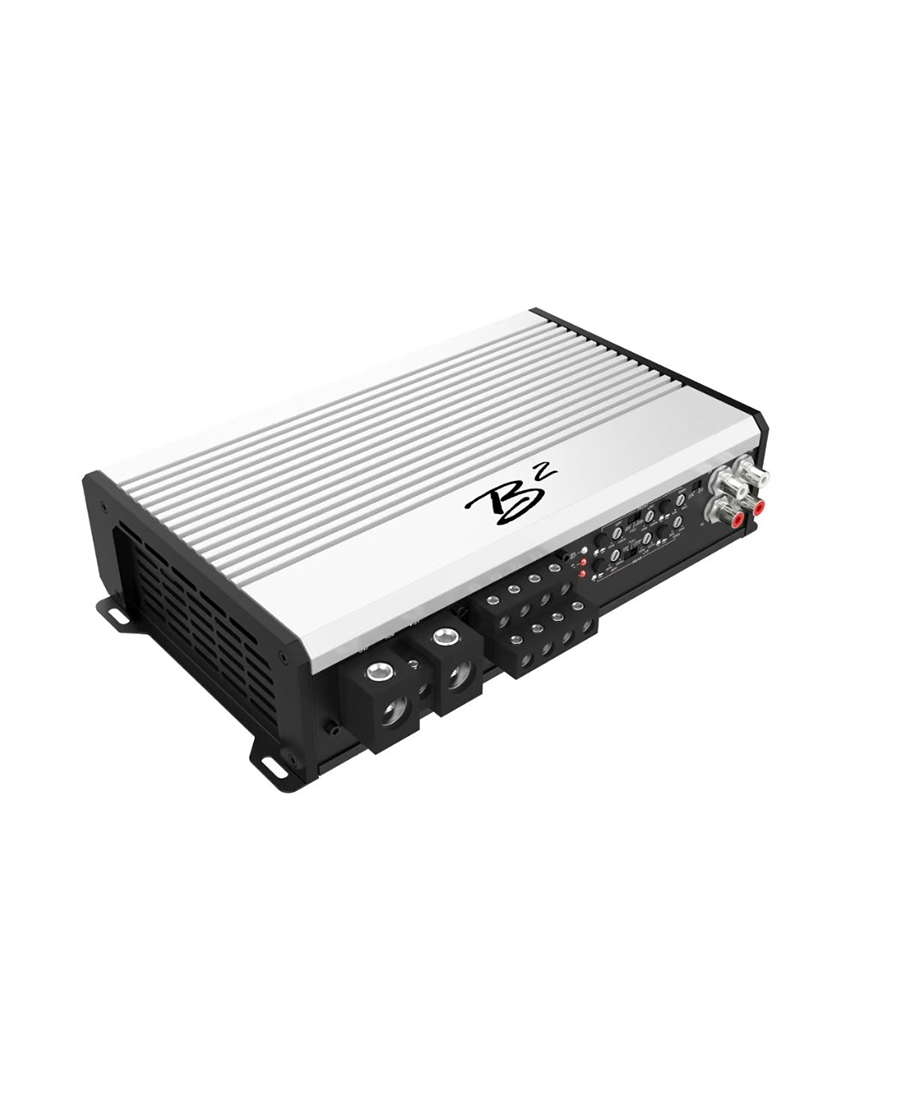

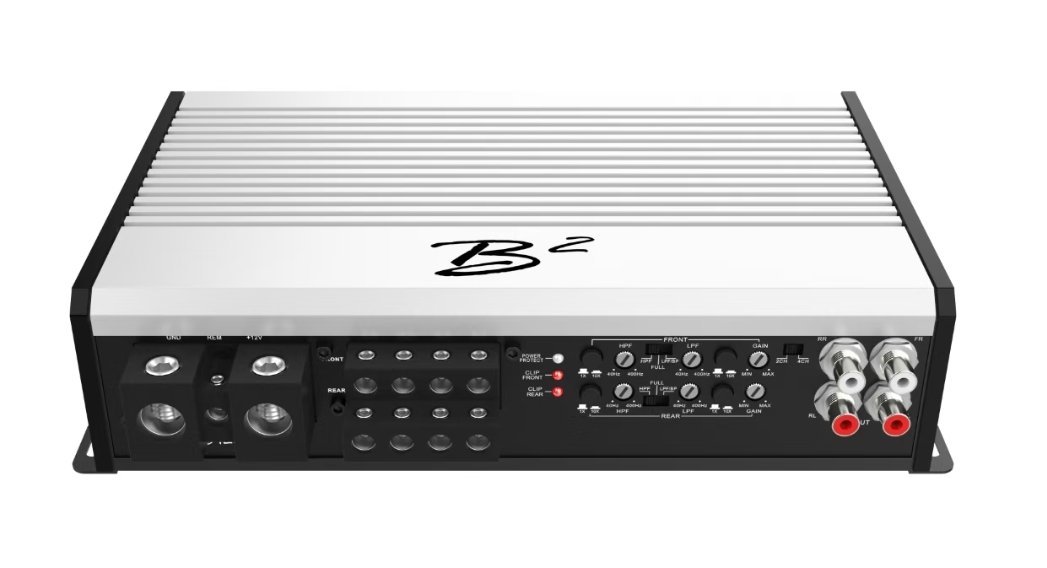

The new B2 Audio RAGE 1200.4 V2 4-channel amplifier is here! With the RAGE 1200.4 V2, B2 Audio introduces the new B2 Audio amplifier design with a single-sided connection front.
In fact, the RAGE series, inherited features from the M and Zero series amplifiers. Low voltage and clip sensors, either on the amplifier or the bass remote, are another new feature that distinguishes this amplifier series.
The RAGE amplifiers all have integrated ACCU8 crossovers with bandpass configuration on all channels.
| Specification | 14.4V |
|---|---|
| Power @ 4 Ω: | 4 x 200 w |
| Power @ 2 Ω: | 4 x 300 w |
| Power @ 4 Ω bridge 14.4v < 1% THD: | 2 x 600 w |
Specification
| Frequency Response: | 10 Hz ~ 24 KHz (+/- 2 dB) |
| Signal to Noise Ratio: | > 90 dB |
| Input Sensitivity: | 6 ~ 0.2 V |
| Crossover: | 12 dB / Oct |
| High Pass Crossover: | 20 Hz ~ 4 KHz |
| Low Pass Crossover: | 50 Hz ~ 5 KHz |
| Damping Factor: | >200 |
| Power Terminal Gauge: | 2 GA x1 |
| Fuse Rating: | 100 A |
| Operational voltage: | 9 V ~ 17.5 V |
| Dimensions: | 278 x 170 x 57 MM |
