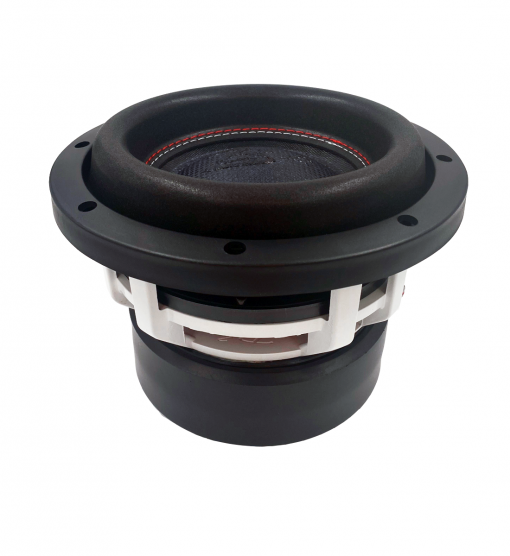

Is your RAGE small, thus confined space, the 6.5 & the 8″ RAGE subwoofers have gained a lot of traction these recent years. They are great subwoofers for underseat enclosures in trucks & SUV’s. Most popular installs are with either 6 x 6.5″ or 4 x 8″ powered by anything from 1500 to 3500 watts. Need a single woofer setup? These RAGE’s have the authority to widen the the frequency response of any high end factory system.
These small woofers have also received the V2 blessing.
The SAFT** & OCAF** were expanded to feature both 6.5″ & 8″. The advantages are clear. Increased cooling and smoother air flow. Attributes that are helpful for your spl output and audio reproduction. These baskets are designed for a higher excursion. The 8″ had the spider spaced farther apart from the cone, giving it more area to extend itself without mechanical noise. Both woofer have even gotten the added benefit of 6 extra pole vents, increasing the power handling with 25% vs the v1. Adding both rigidity & strength, the new custom composite fiber dustcap, with protruding logo keeps the cone stable. The fact it just looks awesome is a mere bonus!
Be outRAGEous with the RAGE V2!
|Specification||RAGE 8″ D2||RAGE 8″ D4|
|Power Handling:||500w rms||500w rms|
|Sensitivity:||84.1 dB||82 dB|
|Nominal Impedance:||Dual 2 Ω||Dual 4 Ω|
|DC Resistance (Re):||1.9 Ω||3.2 Ω|
|Resonanse Frequency (Fs):||38.7 Hz||40.9 Hz|
|X-Max:||15mm 1 way||15mm 1 way|
|Vas:||5.8 L||5.9 L|
|Voice Coil diameter:||2″||2″|
