GS08SLIM-VB
Complete subwoofer and high quality enclosure package
Hand produced in Germany to high standard and finished in tough anthracite carpet with ‘G’ accents.
This example complete with Gladen Audio GS-08 SLIM bass unit in this sealed enclosure, which produces a fantastic subbass response thanks to its clever design. The Gladen GS08 SLIM is a 20 centimeter woofer from Gladen’s above-average RS line. This woofer produces a stable and powerful power of 250 watts continuously with its Dual 2 Ohm voice coils. Thanks to the high efficiency of the Gladen Audio GAMMA SLIM woofers, they are easy to control and they already perform optimally at relatively low amplifier powers.
This package is also available with the optional Gladen ATM-4 module which produces 200wrms @ 4 ohms for a complete plug and play subwoofer solution. Which comes complete with all necessary wiring to make adding a subwoofer a breeze.

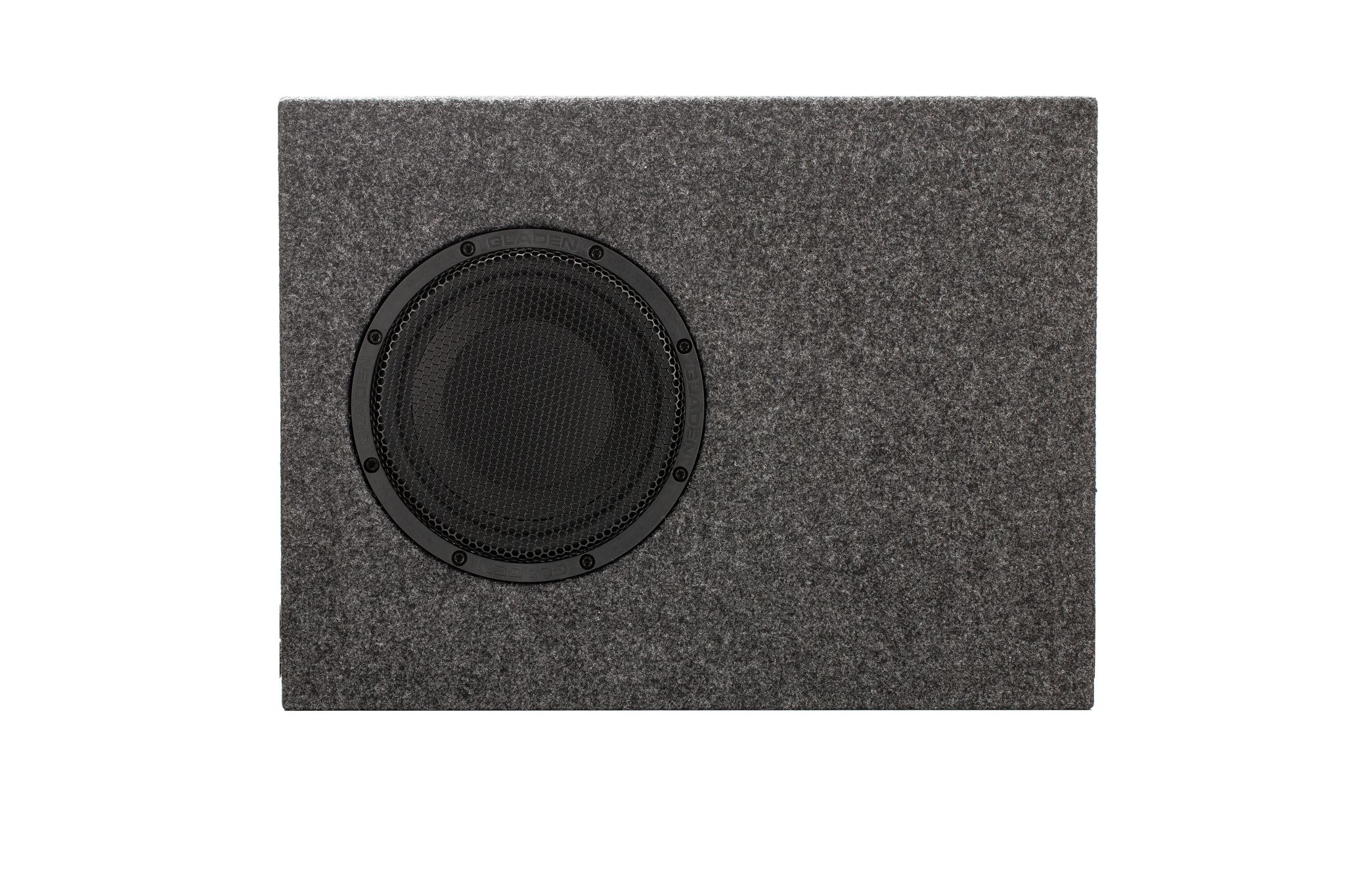

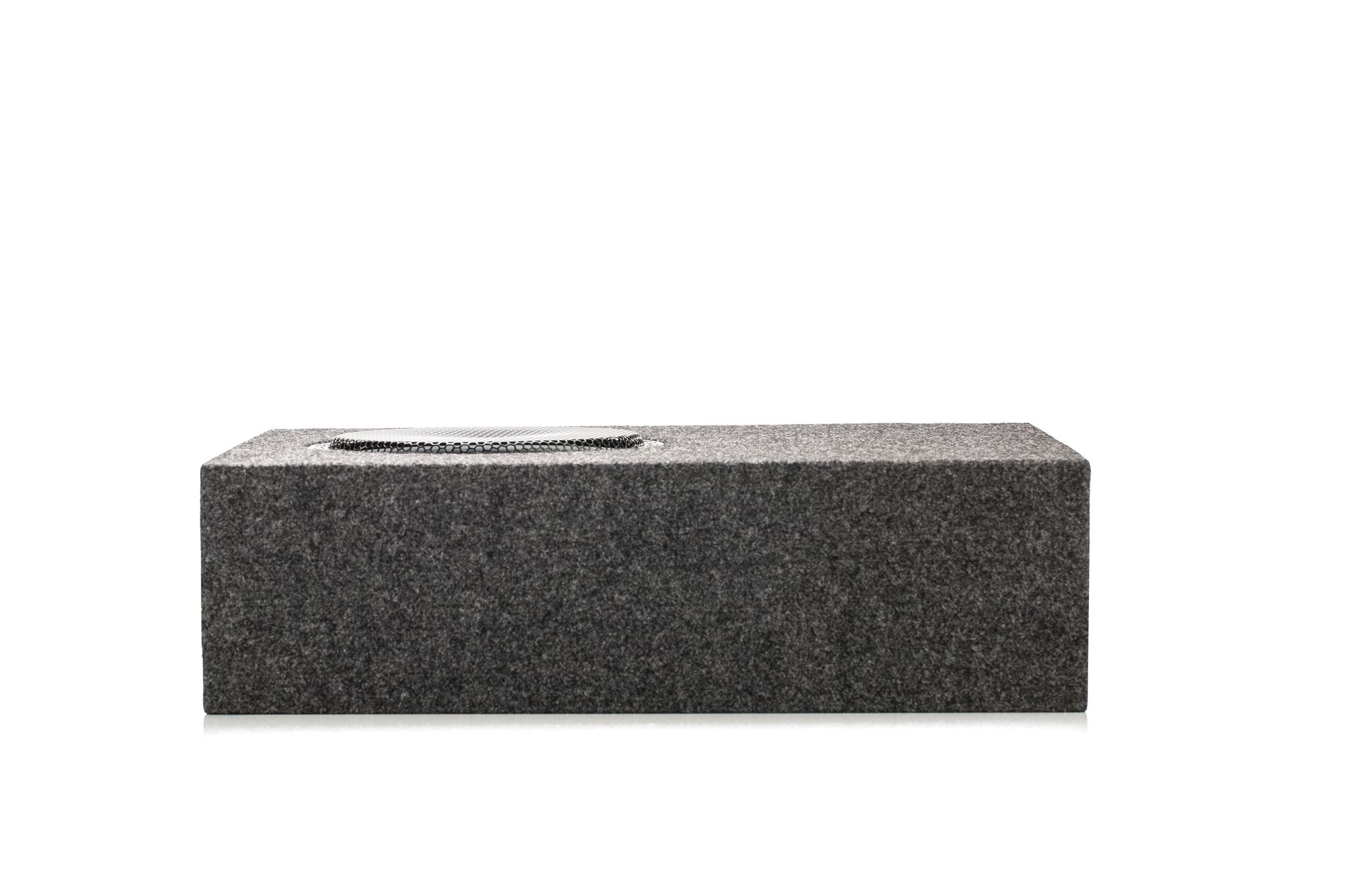

The enclosure Can be orientated with the driver firing up, back or forward. But where it truly shines is when its mounted in a down firing position. With enough clearance for the driver to clear the cone during peak excursion rubber mounts come provided with the enclosure.
1x 325/225 Watt D2 Ohm
Dimensions: 480mm wide 360mm deep x 138mm high, +/-0,5mm
History of Gladen Audio;
Love for details, perfection and music led Henning Gladen to develop loudspeaker and crossover systems in the 90s. The GLADEN brand was launched in 1997. Today, the aerospace engineer leads GLADEN development technologies that are also used in the aerospace or automotive industry, such as FEM calculations. But even with many technical details, GLADEN AUDIO accompanies its products in unusual and new ways, with one goal: the perfect sound experience!
• Vented die-cast basket
• Black Nomex spider
• Paper cone
• PP-dust cap
• 8″ / 20 cm
• 300 / 200 Watt
• Dual 2 ohm impedance
• 1.5″ voice coil
• 76mm Mounting depth
| Specification | Gladen Audio GAMMA SLIM 08 Subwoofer |
|---|---|
| Power Handling: | 225 wrms |
| Sensitivity: | 86.7 dB |
| Nominal Impedance: | Dual 2 Ω |
| Xmax: | 10mm 1 way |
| DC Resistance (Re): | 2x 1.8 Ω |
| Resonanse Frequency (Fs): | 43.4 Hz |
| Vas: | 12.7 L |
| Qts: | 0.566 |
| Qms: | *** |
| Qes: | 0.622 |
| Voice Coil diameter: | 1.5″ |
| Weight | 7 kg |
|---|
