RSX10SLIM-SB-CU

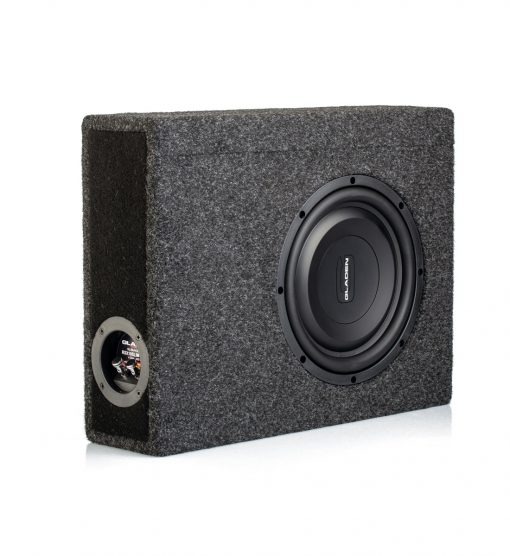

Complete subwoofer and high quality enclosure package
Hand produced in Germany to high standard and finished in tough anthracite carpet with ‘G’ accents.
This example complete with Gladen Audio RS-X10 SLIM bass unit in this sealed enclosure, which produces a fantastic subbass response thanks to its clever design. The Gladen RSX10 SLIM is a 25 centimeter woofer from Gladen’s above-average RS line. This woofer produces a stable and powerful power of 250 watts continuously with its Dual 2 Ohm voice coils. Thanks to the high efficiency of the Gladen Audio RSX SLIM woofers, they are easy to control and they already perform optimally at relatively low amplifier powers.
This package is also available with the optional Gladen ATM-4 module which produces 200wrms @ 4 ohms for a complete plug and play subwoofer solution. Which comes complete with all necessary wiring to make adding a subwoofer a breeze.
The enclosure Can be orientated with the driver firing up, back or forward. But where it truly shines is when its mounted in a down firing position. With enough clearance for the driver to clear the cone during peak excursion rubber mounts come provided with the enclosure.
– CNC manufactured in GERMANY
– 24mm Front/12mm Walls
– Two Colors of Fabric
– 4 Rubber feets
1x 500/250 Watt D2 Ohm
Dimensions: 500mm wide 380mm deep x 135mm high, +/-0,5mm
History of Gladen Audio;
Love for details, perfection and music led Henning Gladen to develop loudspeaker and crossover systems in the 90s. The GLADEN brand was launched in 1997. Today, the aerospace engineer leads GLADEN development technologies that are also used in the aerospace or automotive industry, such as FEM calculations. But even with many technical details, GLADEN AUDIO accompanies its products in unusual and new ways, with one goal: the perfect sound experience!
• Vented die-cast basket
• Black Nomex spider
• Paper cone
• PP-dust cap
• 10″ / 25 cm
• 500 / 250 Watt
• Dual 2 ohm impedance
• 2″ voice coil
• 82mm Mounting depth
Specification | Gladen Audio RS-X SLIM 10 Subwoofer |
---|---|
Power Handling: | 250 wrms |
Sensitivity: | 86.6 dB |
Nominal Impedance: | Dual 2 Ω |
Xmax: | 10mm 1 way |
DC Resistance (Re): | 2x 1.8 Ω |
Resonanse Frequency (Fs): | 42 Hz |
Vas: | 23.4 L |
Qts: | 0.58 |
Qms: | *** |
Qes: | 0.6 |
Voice Coil diameter: | 2.0″ |
Weight | 7 kg |
---|
