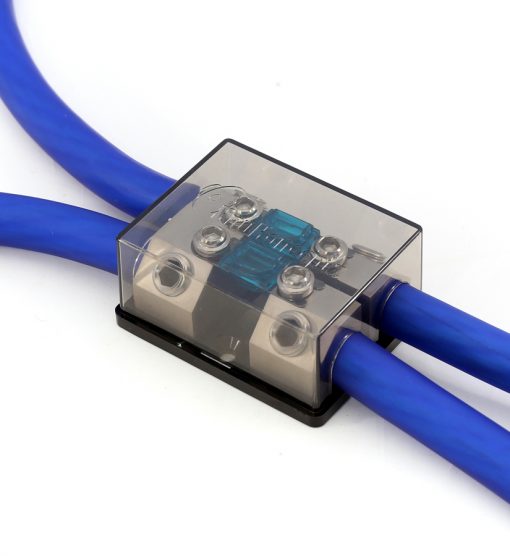

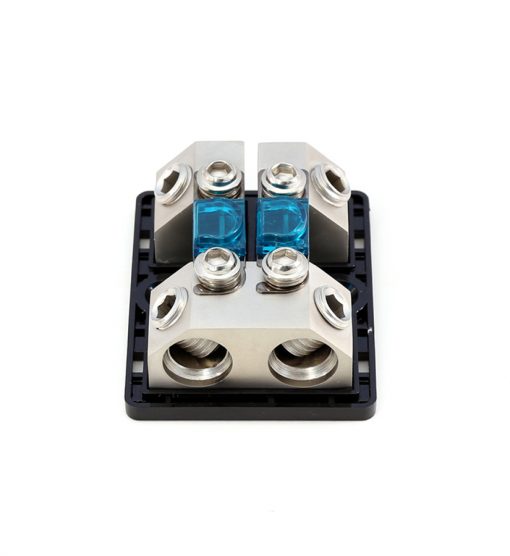

Bassik – simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2020 accepts two 0 or 4 gauge in and two 0 or 4 gauge power wire out without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.
The BK-2020 fuse block has dual inputs which can be used to link additional blocks together to make 4 or 6 way fuse distribution simple. Each output is fused by a Mini-ANL style fuse with a max load of 150A per circuit.
Dimensions L x W x H: 2.92″ x 2.30″ x 1.35″
Total Ports: 4
Inputs: 0-4 Gauge x 2
Ouputs: 0-4 Gauge x 2
Fuse Type: Mini-ANL (AFC)
Fuse Count: 2 Max Load: 150A x 2
Finish: Satin Nickel
How do I determine what size fuses I need for this fuse block?
Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual’s installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required
The BK-2020 has two inputs, do I need to use both?
No, the second input is optional only one input is required to power both fused outputs. The second input is for connecting a second battery or daisy chain configuration to additional distribution blocks. Having the second port makes this item more flexible to the installer then a single port block.
