One Audio IBN3 Series – Infinite Baffle Subwoofer
€2,228
- GBP: £1,929.00
Hi Fidelity Infinite Baffle driver
The NEW “M” Midline series of products from ONE Audio, the IBn3 sets a new standard for elegance and performance.
Experience uncompromising bass performance with our state-of-the-art Infinite Baffle Subwoofer, designed specifically for car audiophiles and home theater purists. Engineered for seamless integration into infinite baffle setups, this subwoofer delivers ultra-clean, articulate low-frequency response with exceptional control. Its low-induction motor structure ensures minimal distortion, preserving the purity and detail of every note—even at high output levels. This results in tight, accurate bass that enhances your audio system without the boomy resonance common in traditional subwoofers.

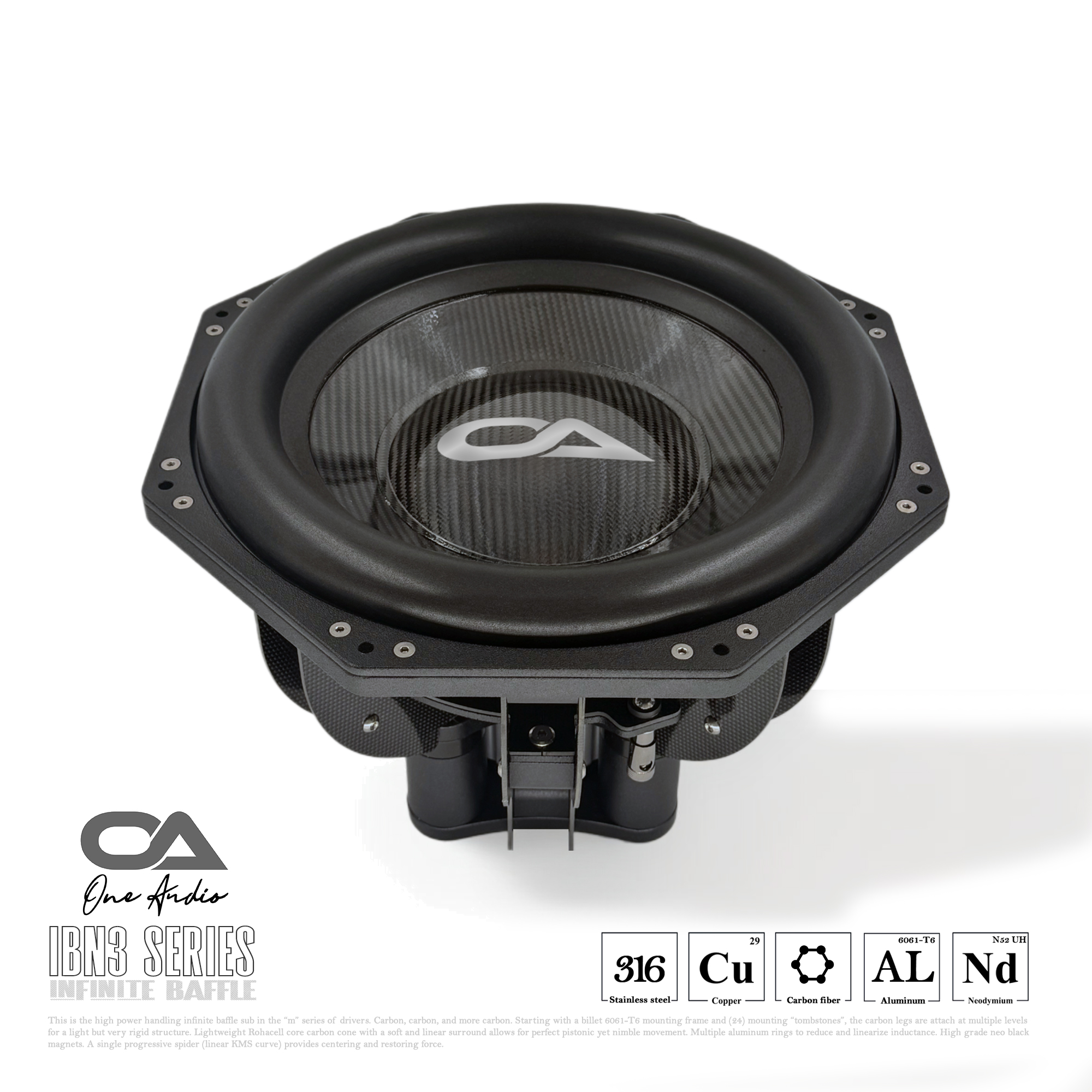

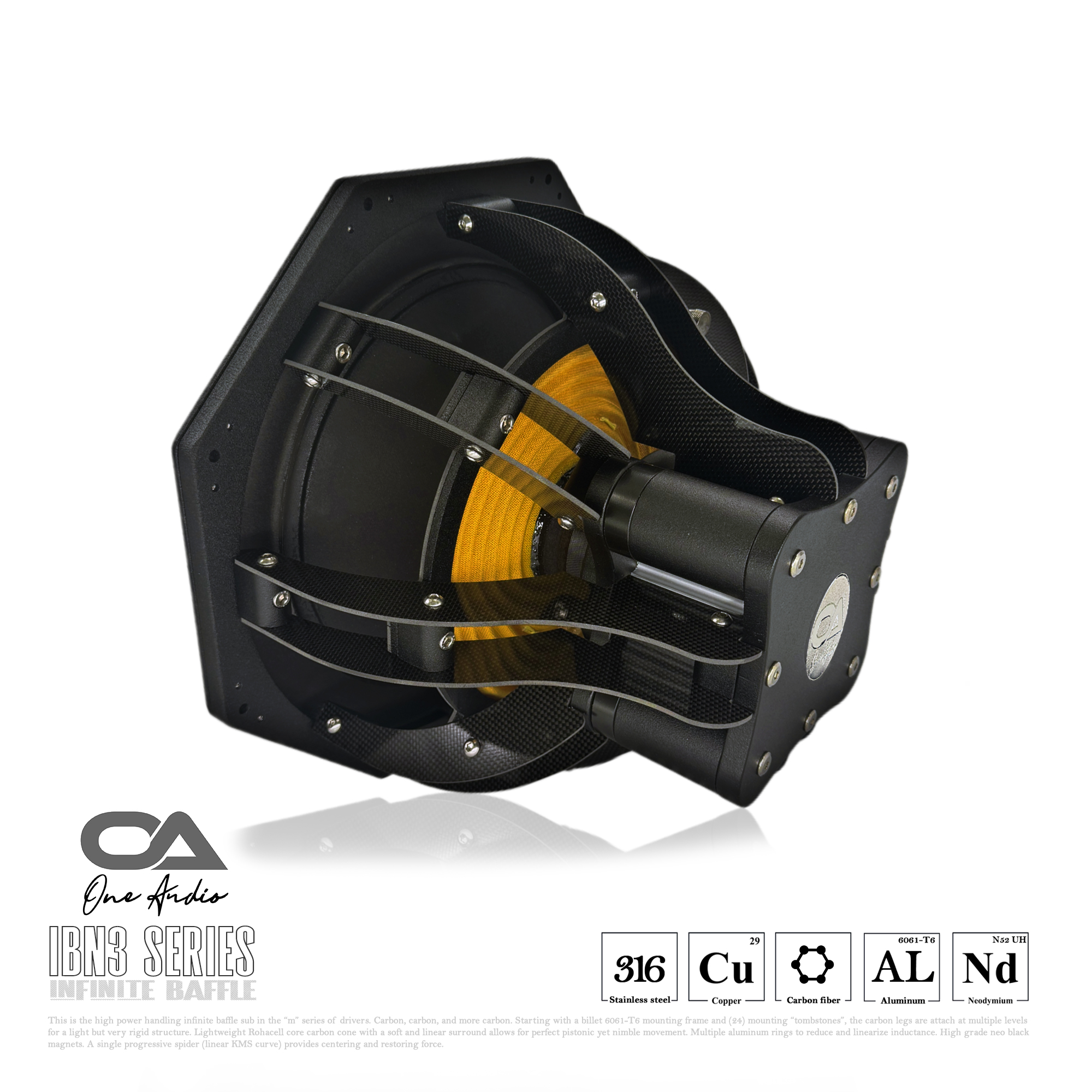

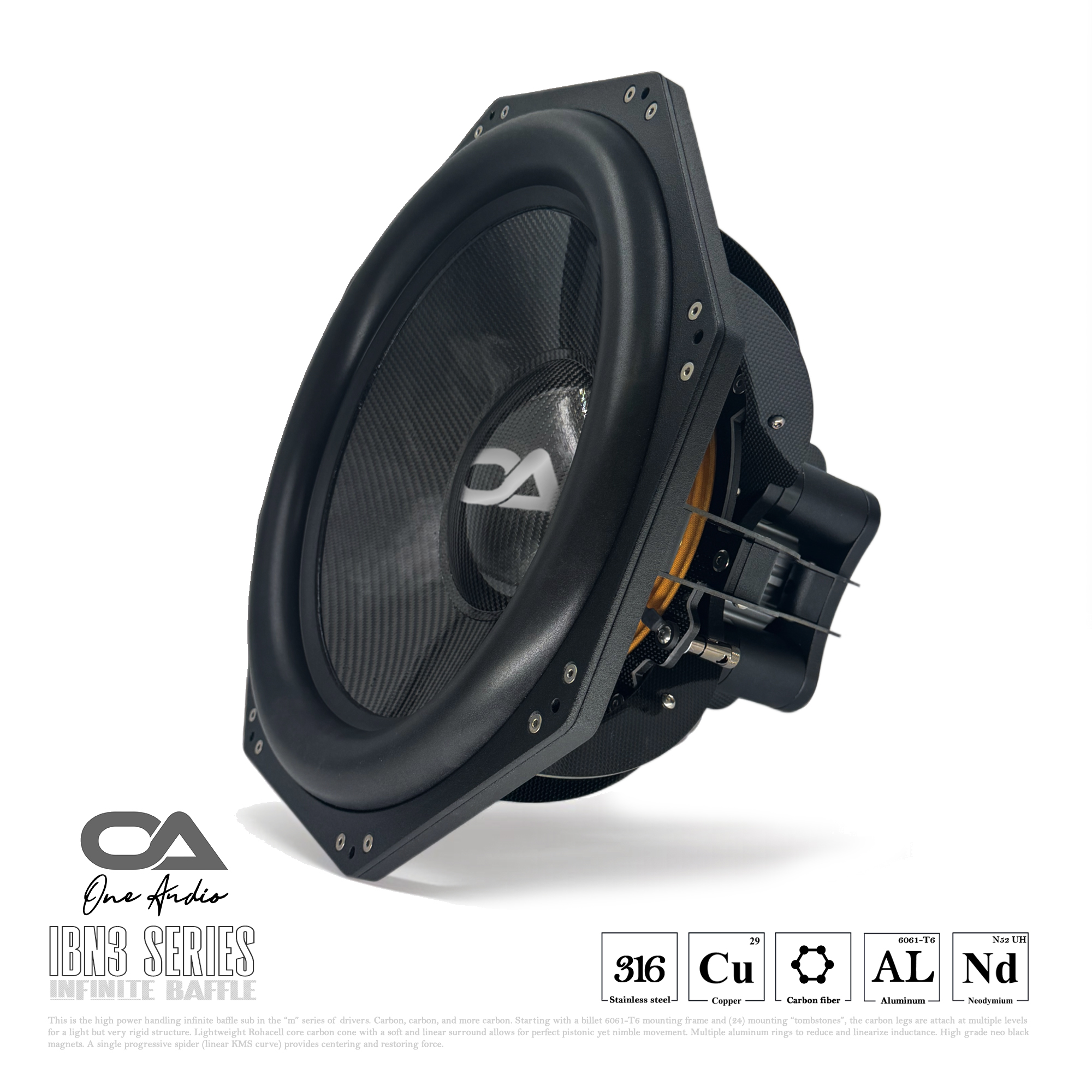

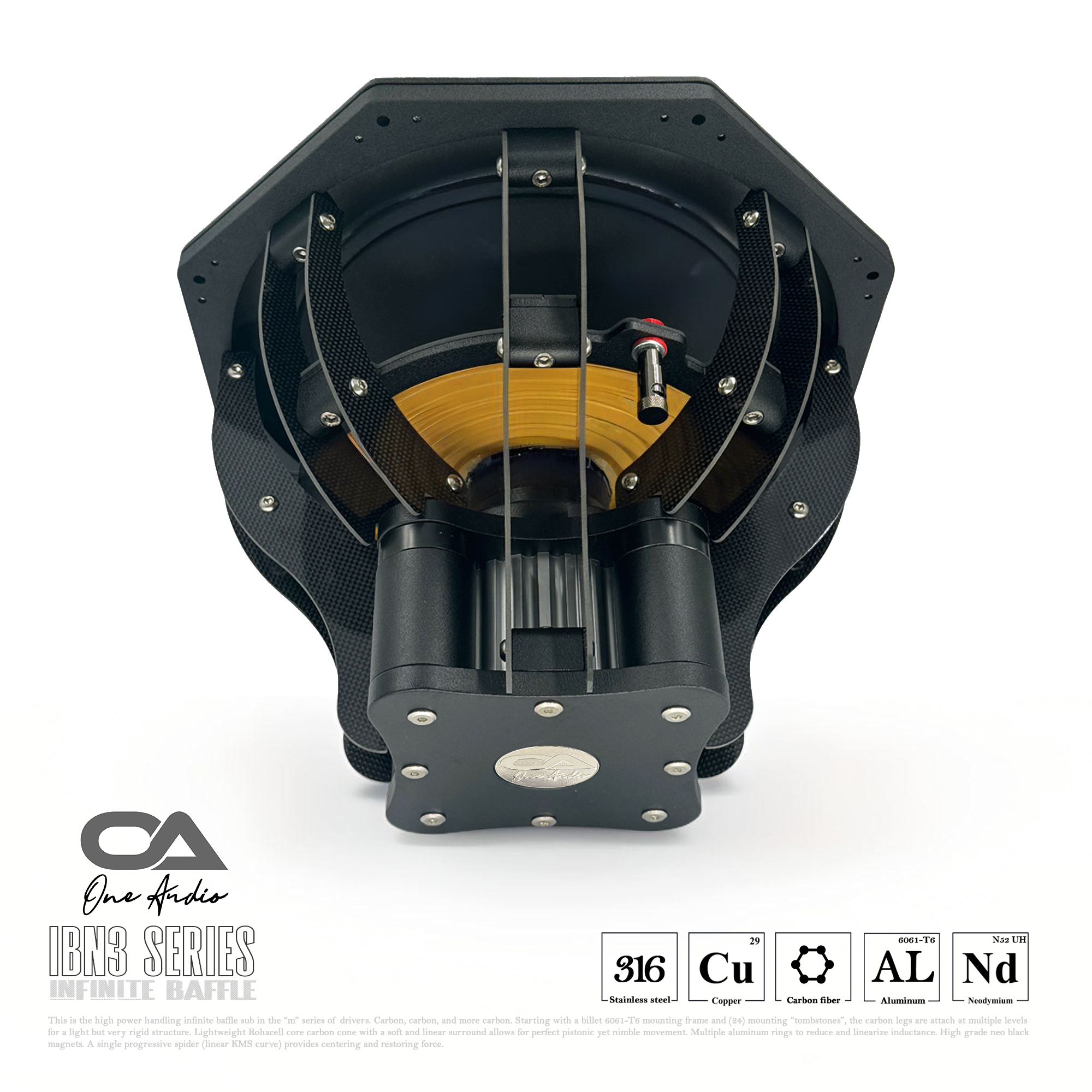

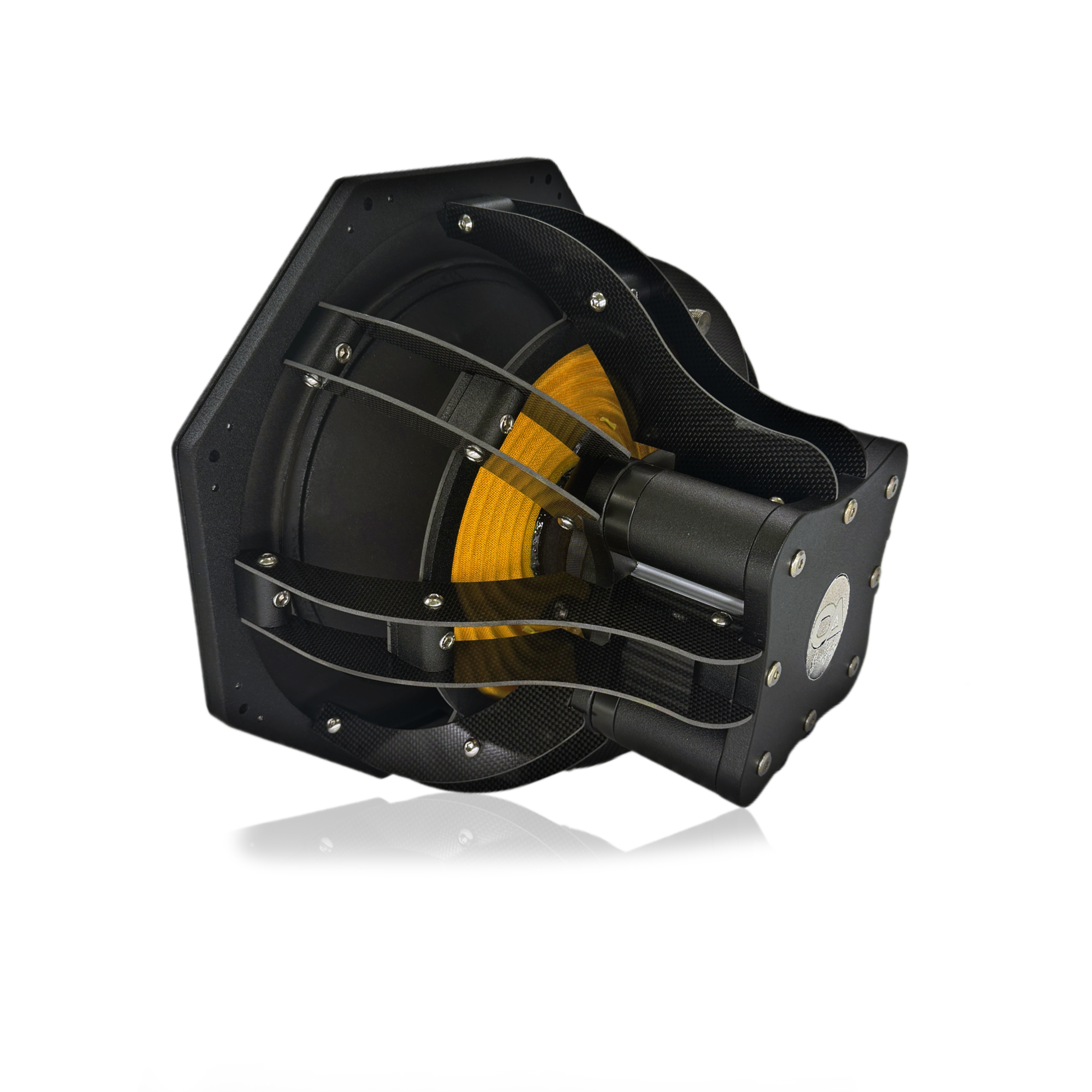

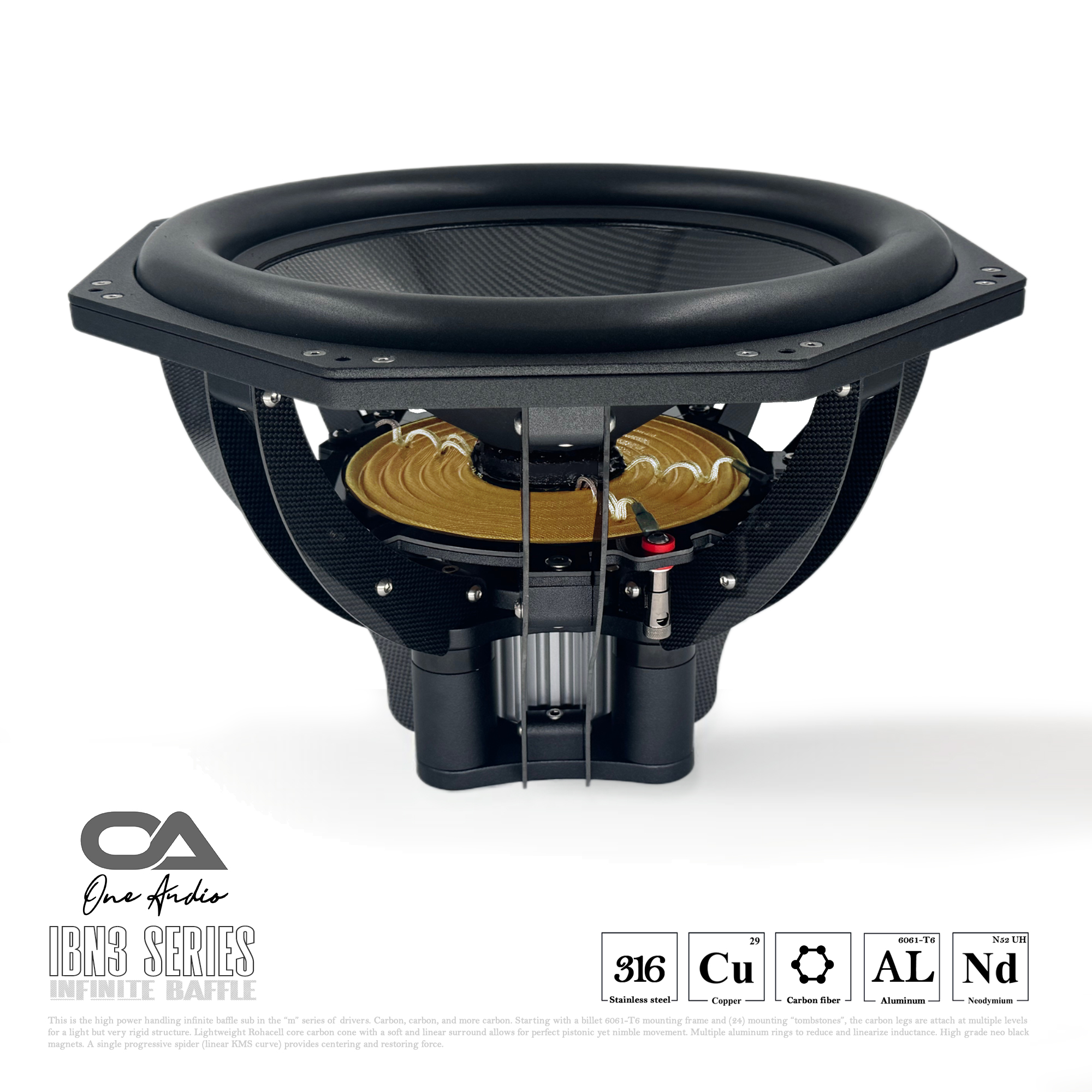

This is the high power handling infinite baffle sub in the “m” series of drivers. Carbon, carbon, and more carbon. Starting with a billet 6061-T6 mounting frame and (24) mounting “tombstones”, the carbon legs are attach at multiple levels for a light but very rigid structure. Lightweight Rohacell core carbon cone with a soft and linear surround allows for perfect pistonic yet nimble movement. Multiple aluminum rings to reduce and linearize inductance. High grade neo black magnets. A single progressive (linear KMS curve) provides centering and restoring force. Details abound with every part designed and selected. While this is slotted into our “m” series midline of drivers, it is anything but that.
This advanced motor system provides high efficiency and fast transient response, ensuring deep lows that are both powerful and musical. The subwoofer’s light weight yet robust construction utlizing carbon fiber frame structures and optimized cooling system guarantee long-term reliability and consistent performance under demanding conditions. Whether you’re building a reference-level listening room or upgrading your in-wall setup, this Infinite Baffle Subwoofer is the ultimate low-frequency solution.
Delivery 3-4 weeks
Features
Thiele-Small Parameters
| IBN3 12 | IBN3 15 | IBN3 18 | ||
|---|---|---|---|---|
| Coils | S2/S4 | S2/S4 | S2/S4 | |
| FS | tba/tba Hz | 20.3Hz/20.9Hz | 19.1Hz/20.0Hz | |
| RE | tba/tba | 1.95 Ω / 2.93 Ω | 1.94 Ω / 2.90 Ω | |
| QMS | tba/tba | 4.17 / 4.08 | 4.28 / 4.08 | |
| QES | tba/tba | 0.80/0.77 | 0.87/0.82 | |
| QTS | tba/tba | 0.67/0.65 | 0.72/0.68 | |
| MMS | tba/tba | 387.3g/371.8g | 446.2g/419.6g | |
| Le | tba/tba | 0.92mH/1.50mH | 0.91mH/1.41mH | |
| SD | 490cm^2 | 810cm^2 | 1210cm^2 | |
| VAS | tba/tba | 147.7 l / 145.2 l | 324 l / 313.56 l | |
| SPL | tba/tba | 83.92 1W/1m / 84.39 1W/1m | 86.2 1W/1m / 86.9 1W/1m | |
| BL (NA) | tba/tba | 10.97 / 13.58 | 10.94 / 13.72 | |
| XMAX | 34mm (One Way) | 34mm (One Way) | 34mm (One Way) |
Technical Specifications
| IBN3 12 | IBN3 15 | IBN3 18 | ||
|---|---|---|---|---|
| Overall Diameter | tba | tba | tba | |
| Cutout Diameter | tba | tba | tba | |
| Mounting Depth | tba | tba | tba | |
| DriverDisplacement | tba | tba | tba |
| Weight | 12 kg |
|---|
