KnuKonceptz Ultimate Battery Terminal v2 Pair with OEM Side Post Adapter

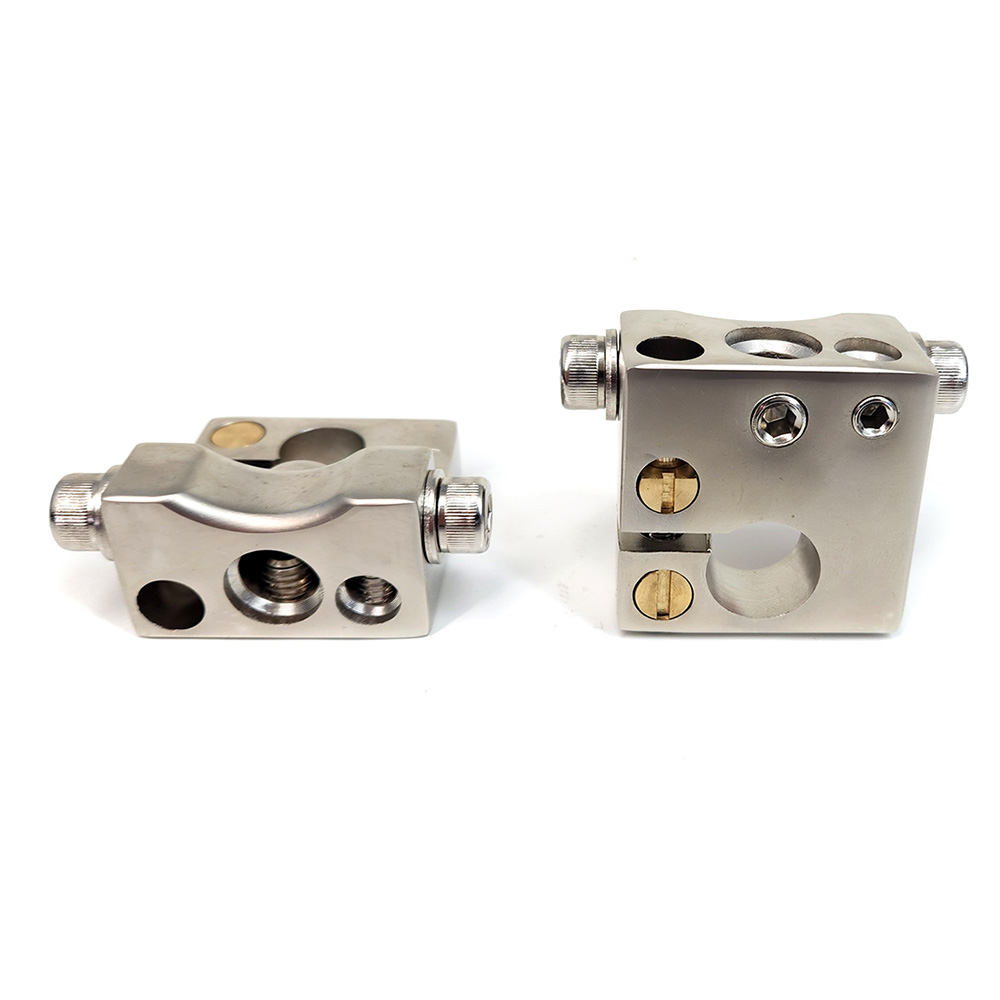

KnuKonceptz has redefined Ultimate to bring an even more versatile battery terminal to market. The Ultimate Battery Terminal UBT-20 offers symmetrical application of our popular Top Post and Vertical Top Post adapters. Installers can now easily manipulate any factory battery application with screw ports on both left and right side of the terminal.

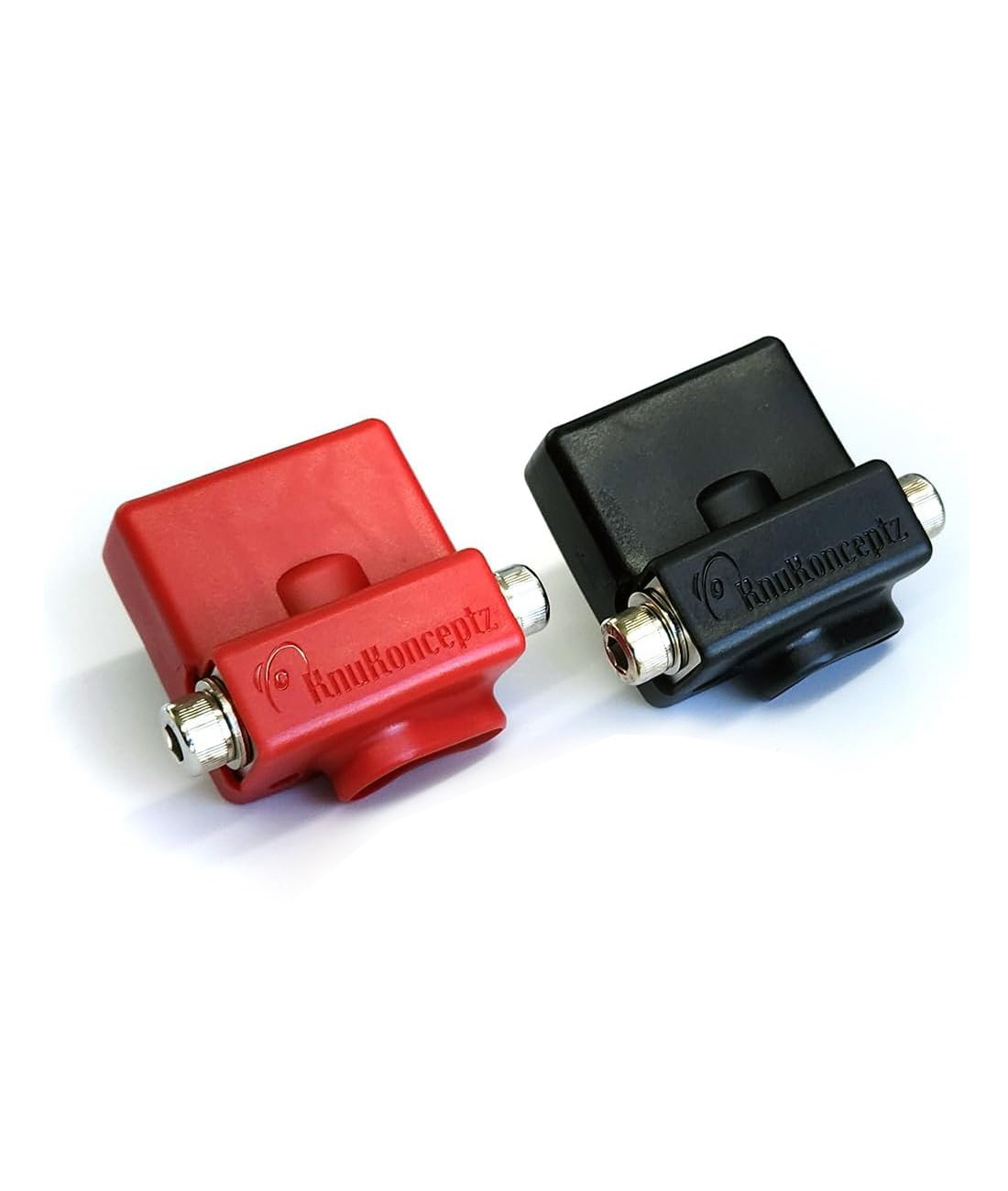

The UBT-20 also holds a variety of cable sizes by set screws and the two ring terminal ports. Each UBT-20 accepts one each 1/0 and 4 gauge wire. These two set screws are accessible from the bottom of the terminal, even after the insulated color coded cover is in place. The ring terminal ports can hold any gauge cable via the 8mm stud or attach one of our Top Post adapters for easy OEM integration. Like all automotive battery terminals, the UBT-20 is made to SAE specifications, which means that the positive and negative terminals are machined to different diameters. This is a reverse polarity safety feature so that installers cannot tighten a negative terminal onto a positive battery post and cause serious damage to vehicle electronics.

With this you get:

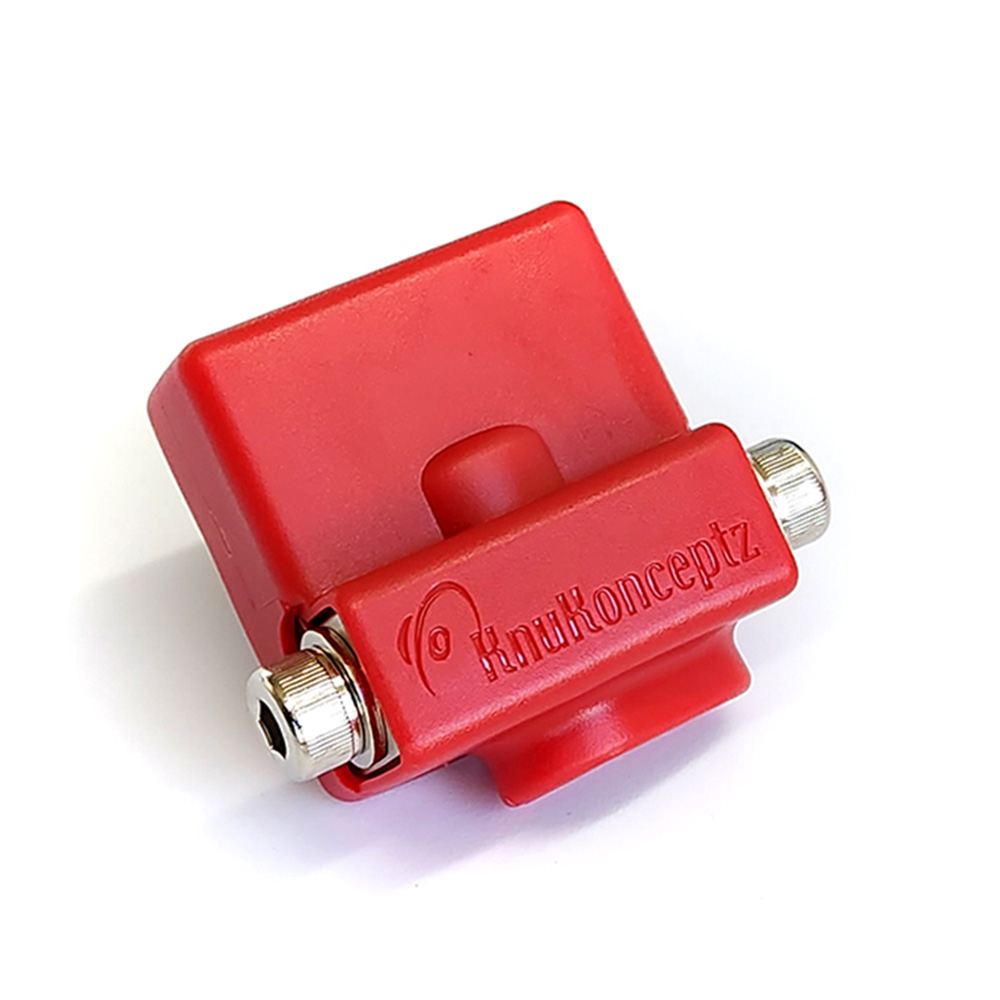

UBT-20P Positive Battery Terminal with cover

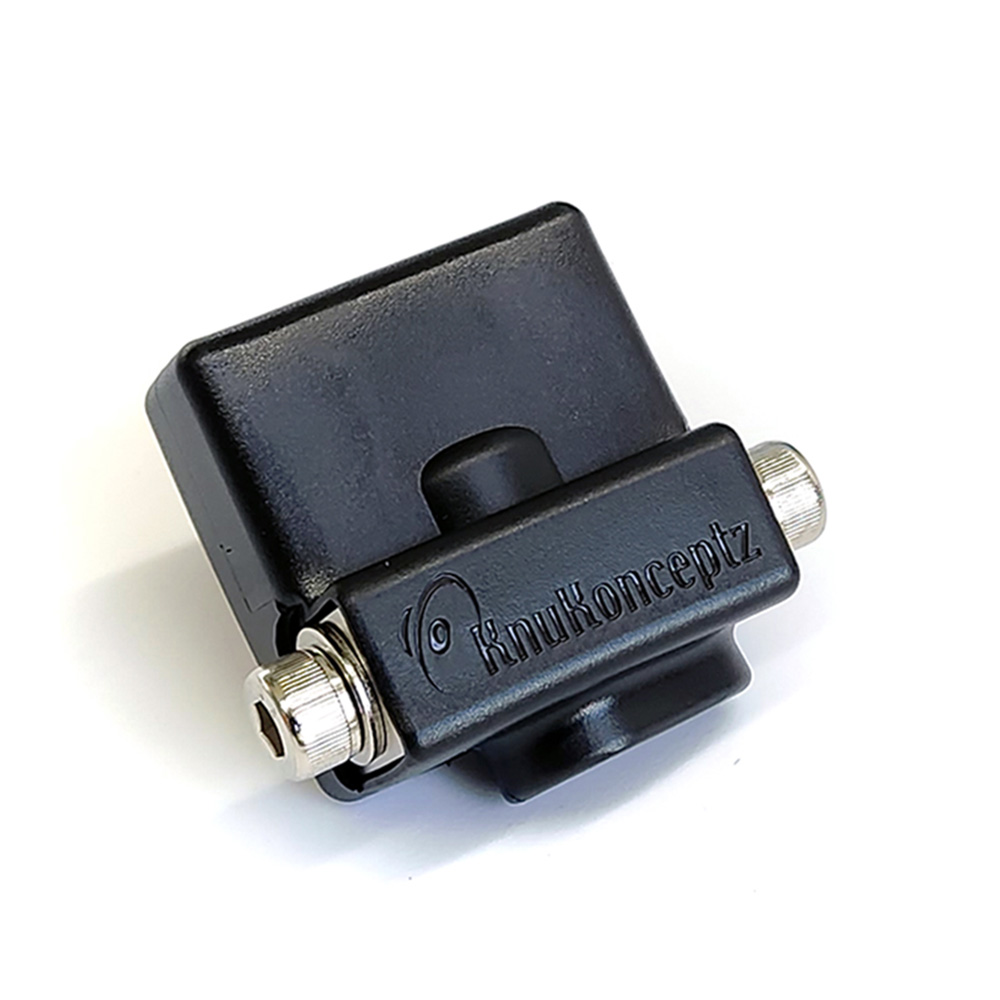

UBT-20N Negative Battery Terminal with cover
TPA-POS OEM Positive Side Post Adapter
TPA-NEG OEM Negative Side Post Adapter

Machined to SAE specifications,
UBT-20P battery terminal post is tapered to fit a positive battery post measuring 19.2mm at the base and 17.4mm at the top of the post
UBT-20N battery terminal post is tapered to fit a post measuring 17.6mm at the base and 16mm at the top of the post

Finish: Nickel Chrome
Outputs: 1/0 Gauge, 4 Gauge, 8 Gauge set screw + one ring terminal port
Dimensions: 2.6” (W) x 2.0” (H) x 1.125” (D) with its insulated cover in place
Warranty: 1 Year

Optional Vertical adapters are available via our other listing but NOT included part with this listing. Part VTPA-PN

KnuKonceptz Vertical Top Post Adapter Pair

Q: How is wire secured to this battery terminal?

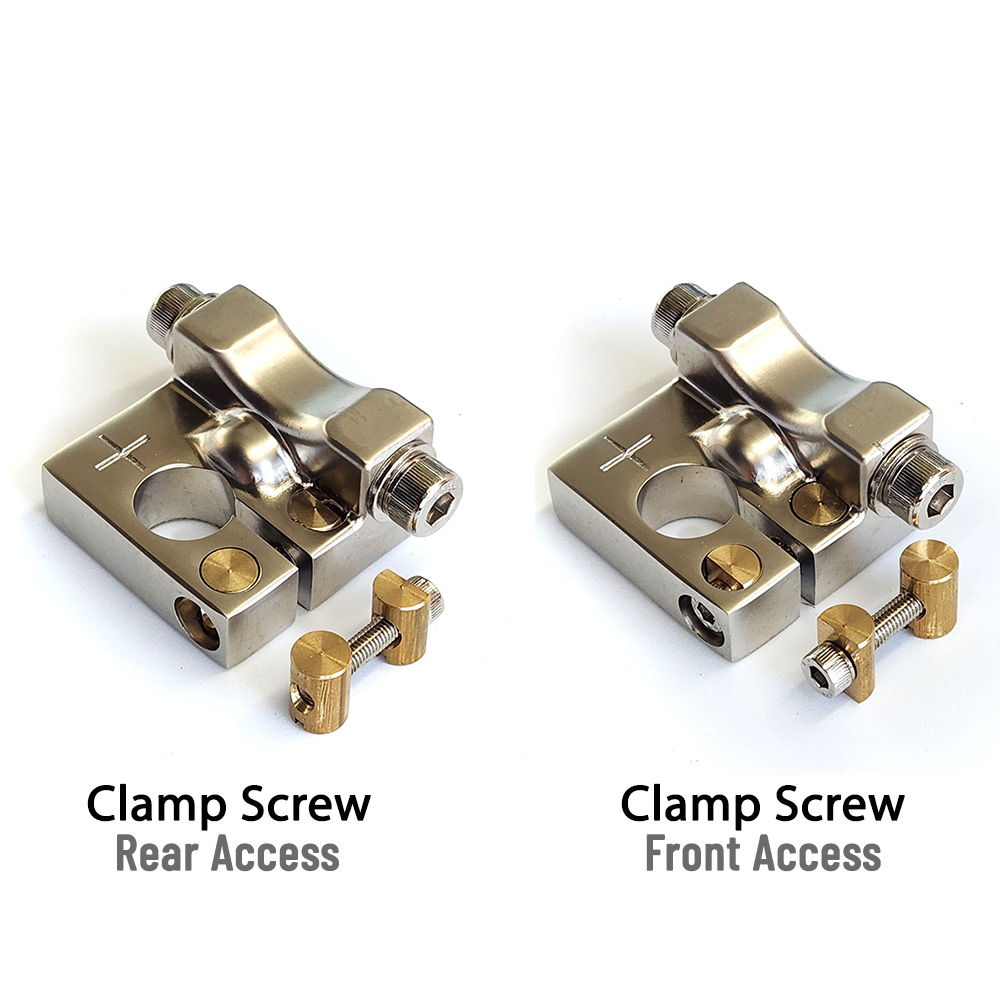

A: Unscrew the allen screw from the bottom of the battery terminal; strip the jacket off of the cable; insert the bare wire into the battery terminal; tighten the set screw into the terminal, compressing the bare strands of the cable. If using the insulated color coded cover, you will need to thread the cables through the cover’s rear opening. This hood protects the exposed area of the cable at the connection point.

Q: Is there a difference between the Positive and Negative side post terminals?

A: Yes, the Negative side post terminal’s opening is smaller in diameter so that it can not be mounted on the positive battery post and cause a reverse in polarity within the vehicle..

Q: How can I connect 2 Gauge wire with these terminals?

A: The 0 Gauge port or ring terminal port can be used with a 2 gauge cable as well

Q: Can I purchase additional cross dowels for this model?

A: Yes, additional cross dowels are available for purchase. They are £0.99 each
